ZL5302-A: Cornermount Corner TV Mount

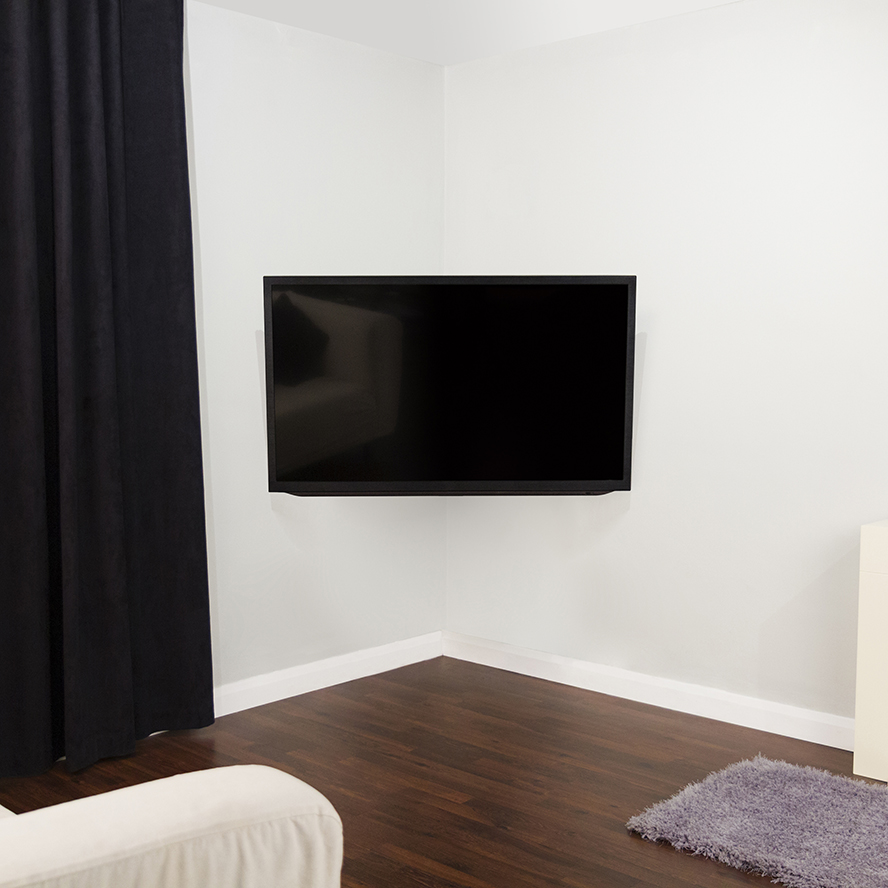

Achieve an open and uncluttered look in your living room by wall mounting your TV with the NEW Cornermount from AVF.

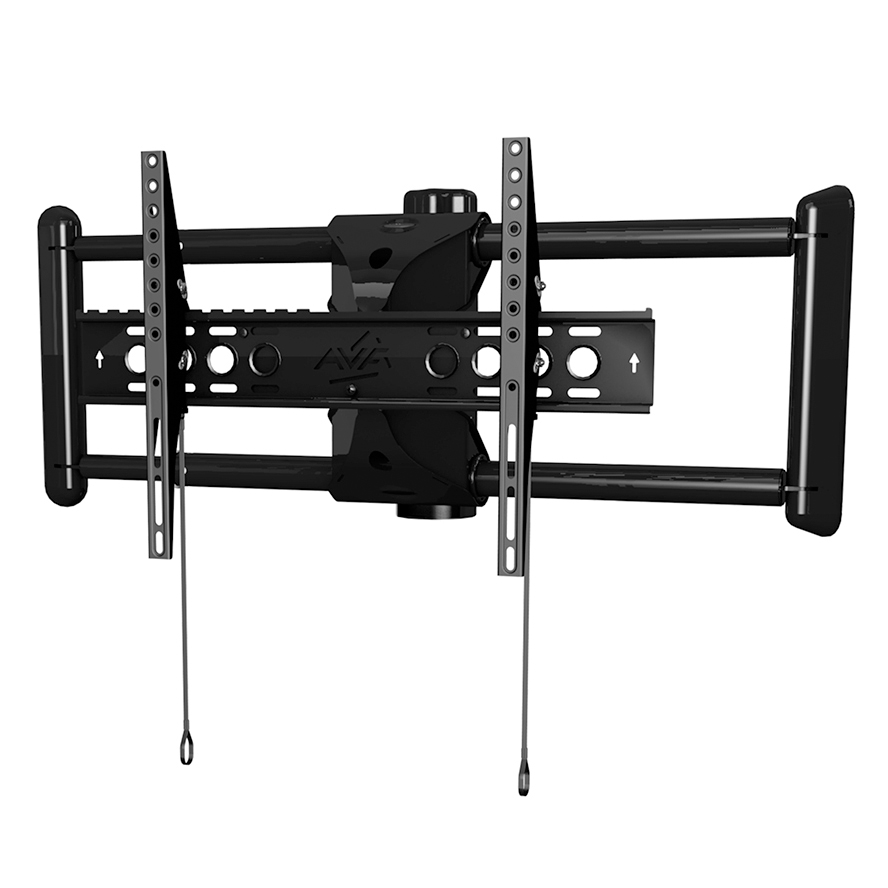

AVF Cornermount is the perfect choice for mounting both curved and flat TVs. This unique, space-efficient system can position TVs closer into corners than other wall mounting solutions.

The ultra-secure two-wall fixing method means Cornermount is super strong and can safely hold TVs up to 70 inches.

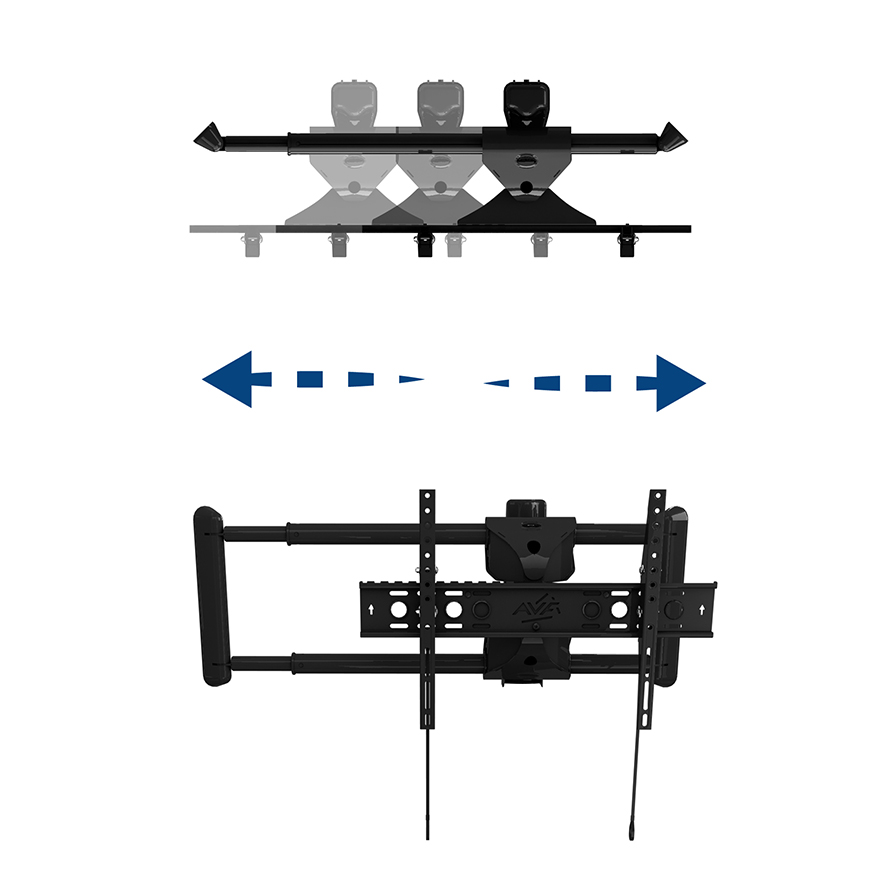

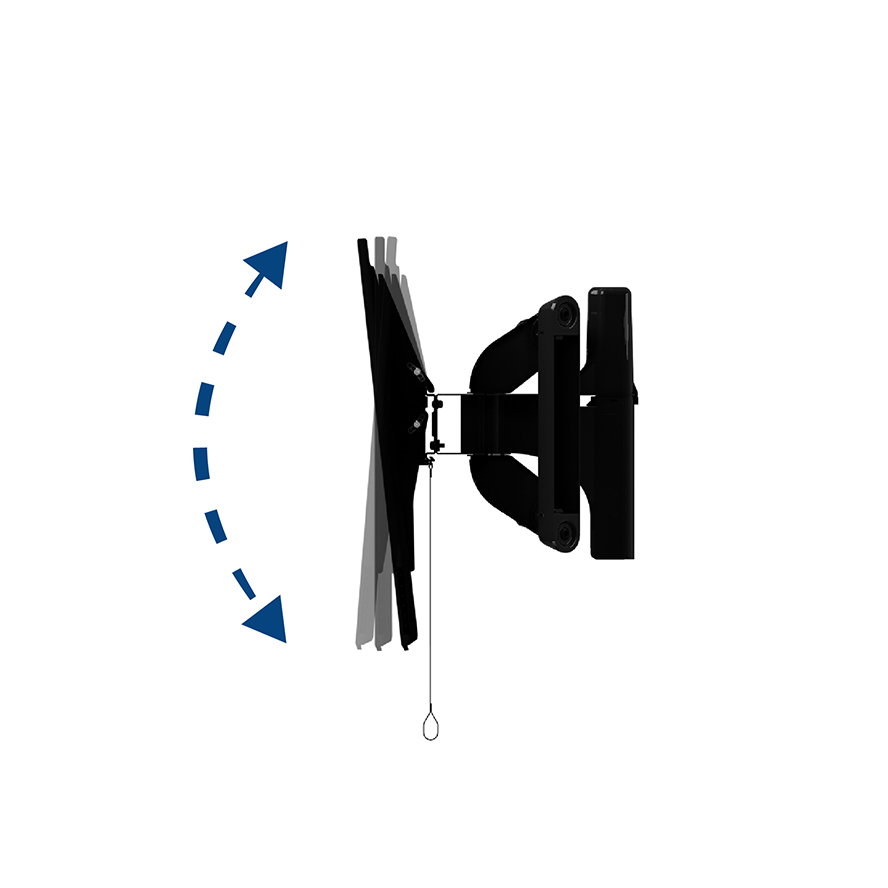

Once on the wall, the TV can be tilted to avoid screen glare, smoothly slid laterally and turned to achieve the perfecting viewing angles.

With the supplied easy-install template and clear step-by-step instructions installation is a breeze and the post install levelling feature means you can level the TV without having to take the mount down or re-drill the wall.

Fixings are included for both wood studs and solid walls (such as brick) and the telescopic support brace adjusts to fit all corner wall stud locations.

Colour	Black
Screen Size	32 – 70" / 81 – 178cm
Max TV Weight	50kg / 110lb
VESA Compatible	50mm x 50mm, 75mm x 75mm, 100mm x 100mm, 200mm x 100mm, 200mm x 200mm, 200mm x 300mm, 300mm x 100mm, 300mm x 200mm, 300mm x 300mm, 400mm x 100mm, 400mm x 200mm, 400mm x 300mm, 400mm x 400mm, 500mm x 300mm, 600mm x 100mm, 600mm x 200mm, 600mm x 300mm, 600mm x 400mm
Function	Tilt and Turn
Upward Tilt	7.5°
Downward Tilt	7.5°
Rotation	50°
Cable Management	Yes
Soundbar Friendly	Yes
Remote Friendly	Yes
Post install Leveling	Yes
Patented Tilt	Yes
Tools Free Adjustment	Yes
