• 40 - 80" screens
  • 50kg / 110lb max
  • 600 x 400mm max vesa

SKU: EL800B

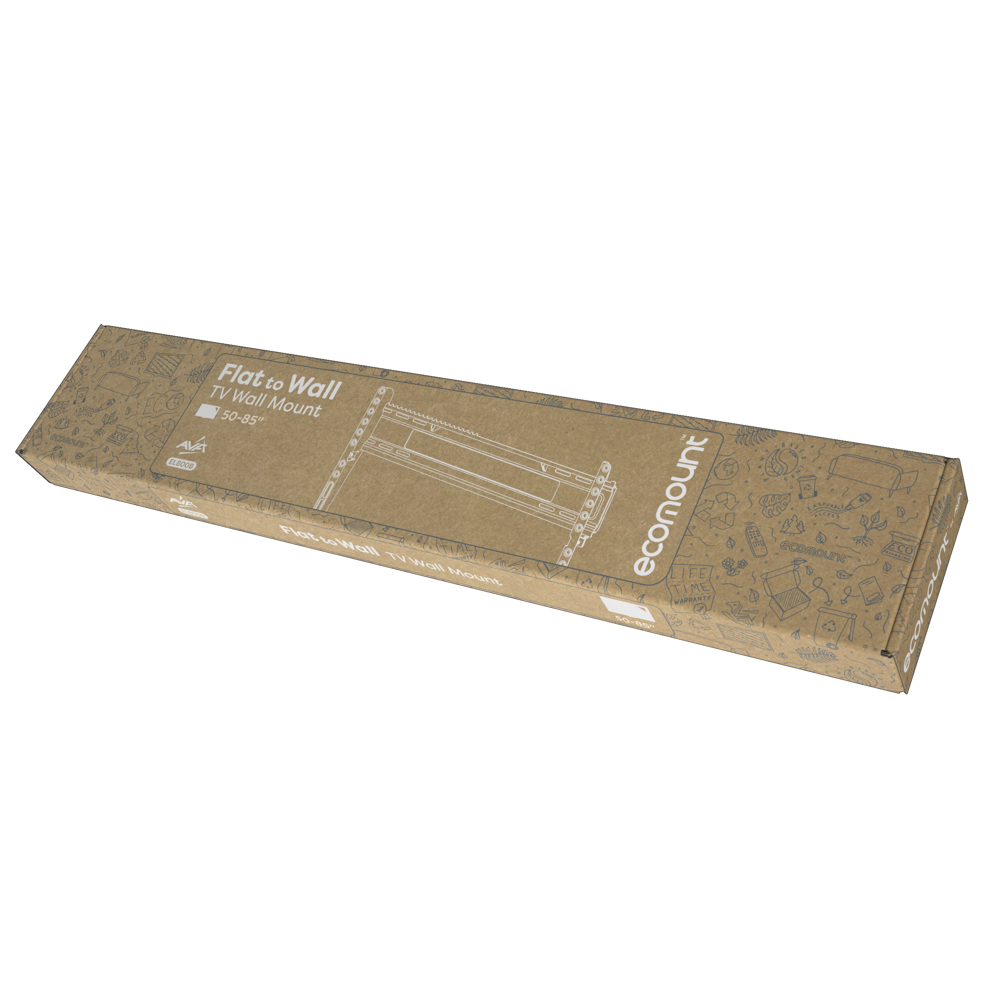

EL800B: ecomount Flat to Wall TV Wall Mount

  • Low Profile.
  • Saves space and secures TV.
  • Audible click lock.
  • Easy to install.
  • Fixings for wood stud and solid walls included.

Browse the ecomount range >

Need help with a product?

Open a Support Ticket >
  1. Product Details

    EL800B is ideal for use on a flat section of wall for TVs from 40in – 80in / 50kg, it is strong, secure and easy to install, with audible click lock mechanism so you are confident in the knowledge your TV is locked in place.

    Suitable for installation on wood studs as well as solid walls, with fixing for both options included.

  2. Specifications

    Colour

    Black

    Screen Size

    40 – 80" / 102 – 203cm

    Max Screen Weight

    50kg / 110lb

    Compatible VESA Sizes

    50 x 50mm, 75 x 75mm, 100 x 100mm, 100 x 200mm, 200 x 100mm, 200 x 200mm, 200 x 300mm, 300 x 100mm, 300 x 200mm, 300 x 250mm, 300 x 300mm, 400 x 300mm, 400 x 350mm, 400 x 400mm, 400 x 100mm, 400 x 200mm, 500 x 300mm, 600 x 100mm, 600 x 200mm, 600 x 300mm, 600 x 400mm

    Mount Function

    Flat to Wall

    Min Distance from Wall

    4.5cm / 1.77"

    Suitable Wall Types

    Wood Stud Wall, Solid Wall (Brick/Concrete)

  3. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template (if available) or the top hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.
