• 12 - 40" screens
  • 20kg / 44lb max
  • 200 x 200mm max vesa

SKU: EL204B

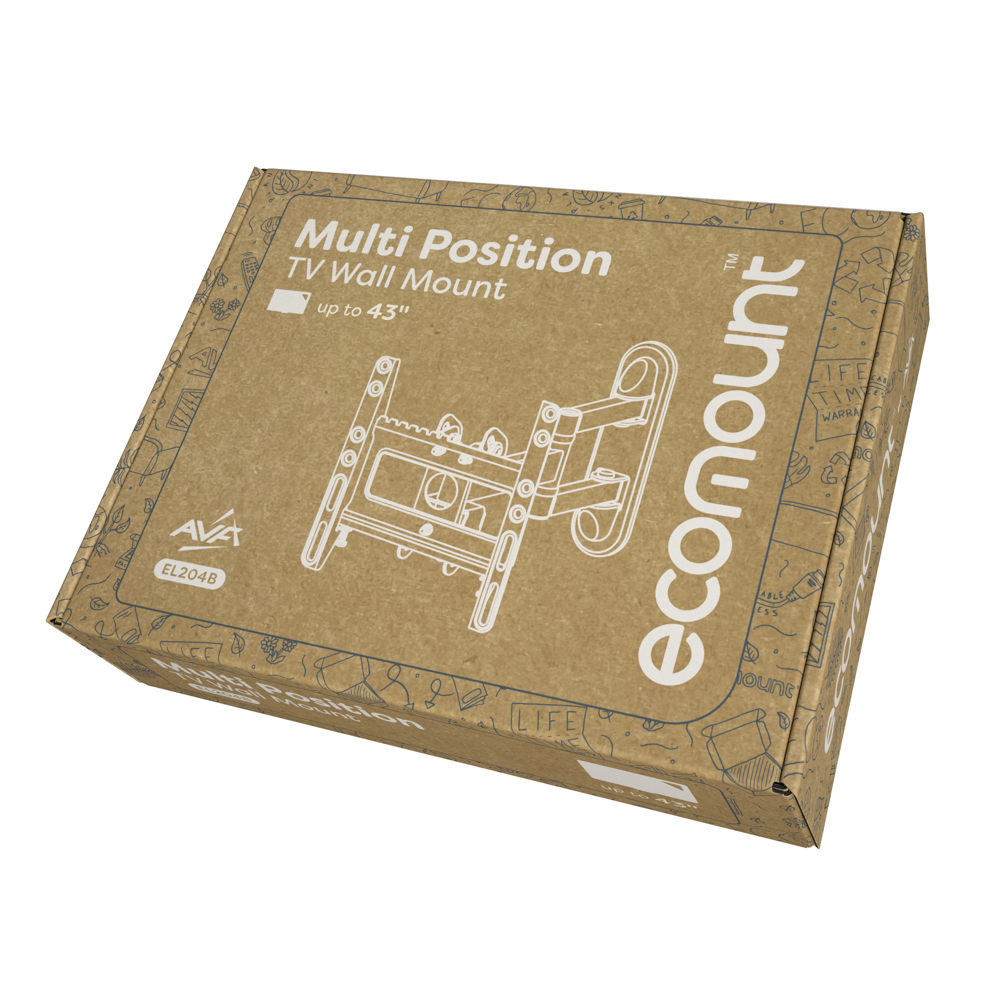

EL204B: ecomount Multi Position TV Wall Mount

  • Fully adjustable.
  • Perfect for corners.
  • Secure screw lock.
  • Easy to install.
  • Fixings for wood stud and solid walls included.

Browse the ecomount range >

Need help with a product?

Open a Support Ticket >
  1. Product Details

    EL204B is fully adjustable which makes it perfect for corners, or any position where you need to angle the screen from the wall. Gives you the freedom to move your room around without having to change the position of your TV, simply turn and tilt the mount to give you the best viewing experience. Suitable for TVs from 12in – 40in / 20kg, it is strong, secure and easy to install, with secure screw lock mechanism so you are confident in the knowledge your TV is locked in place.

    Suitable for installation on wood studs as well as solid walls, with fixing for both options included.

  2. Specifications

    Colour

    Black

    Screen Size

    up to 40" / 102cm

    Max Screen Weight

    20kg / 44lb

    Compatible VESA Sizes

    50 x 50mm, 75 x 75mm, 100 x 100mm, 100 x 200mm, 200 x 100mm, 200 x 200mm

    Mount Function

    Multi Position

    Screen Tilt (Upward)

    Screen Tilt (Downward)

    10°

    Screen Rotation

    180°

    Min Distance from Wall

    7.4cm / 2.9"

    Max Distance from Wall

    32.5cm / 12.8"

    Suitable Wall Types

    Wood Stud Wall, Solid Wall (Brick/Concrete)

  3. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template (if available) or the top hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.
