• 37 - 80" screens
  • 60kg / 132lb max
  • 600 x 400mm max vesa

SKU: AL600

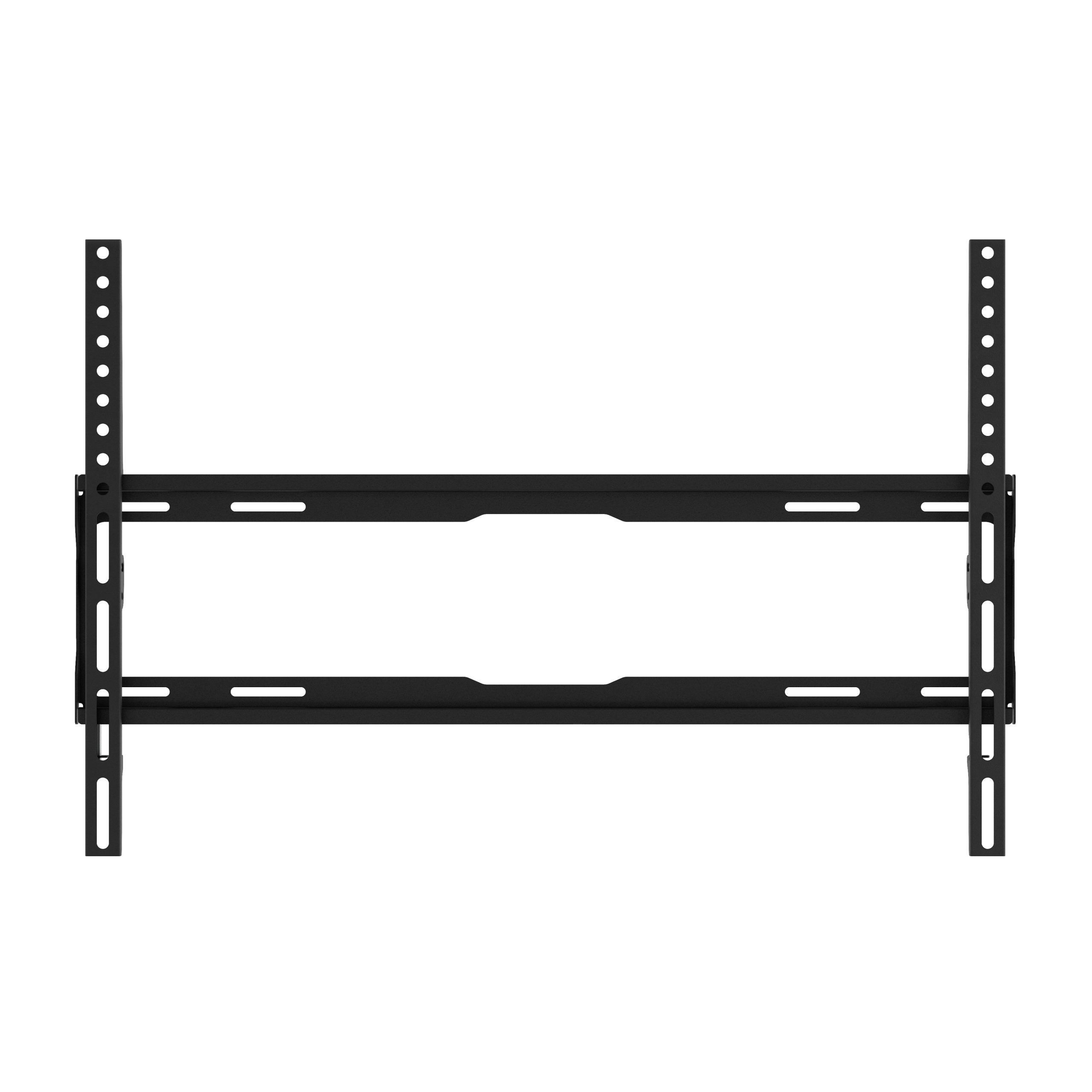

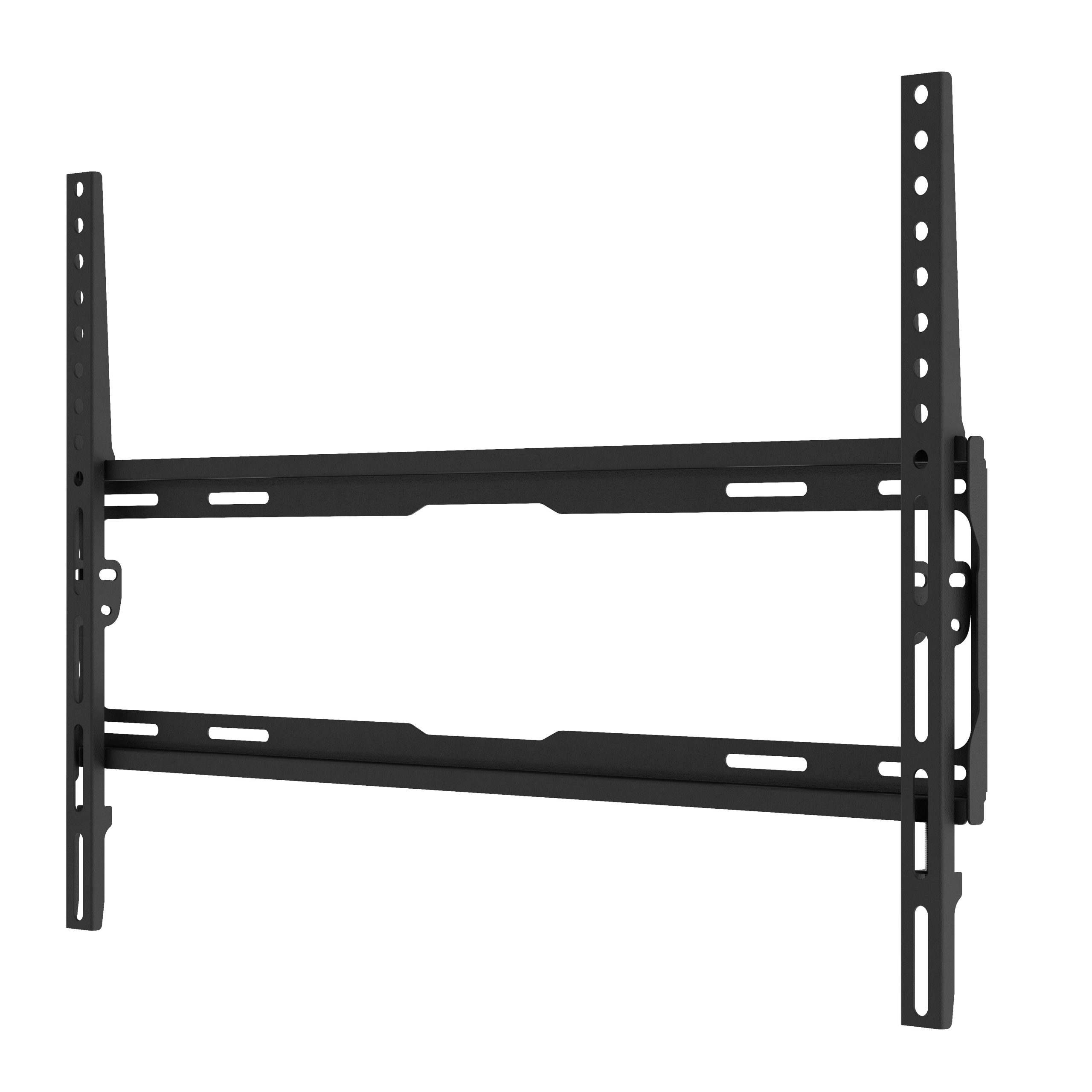

AL600: AVF Red Flat to Wall TV Wall Mount

  • Low Profile.
  • Saves space & secures TV.
  • Easy to install.
  • Fixings included for Wood Stud & Solid Walls.

Browse the full AVF Red range >

Scroll down for more information

Need help with a product?

Open a Support Ticket >

  1. Product Details

    AVF Red, a range of Super strong and Secure, easy to install TV Wall Mounts.

    Ideal for use on a section of flat wall, where the TV is mounted at or around eye level.

    Recommended for centrally located TVs in main rooms.

  2. Video

  3. Specifications

    Colour

    Black
    Screen Size

    37 – 80" / 94 – 203cm
    Max Screen Weight

    60kg / 132lb

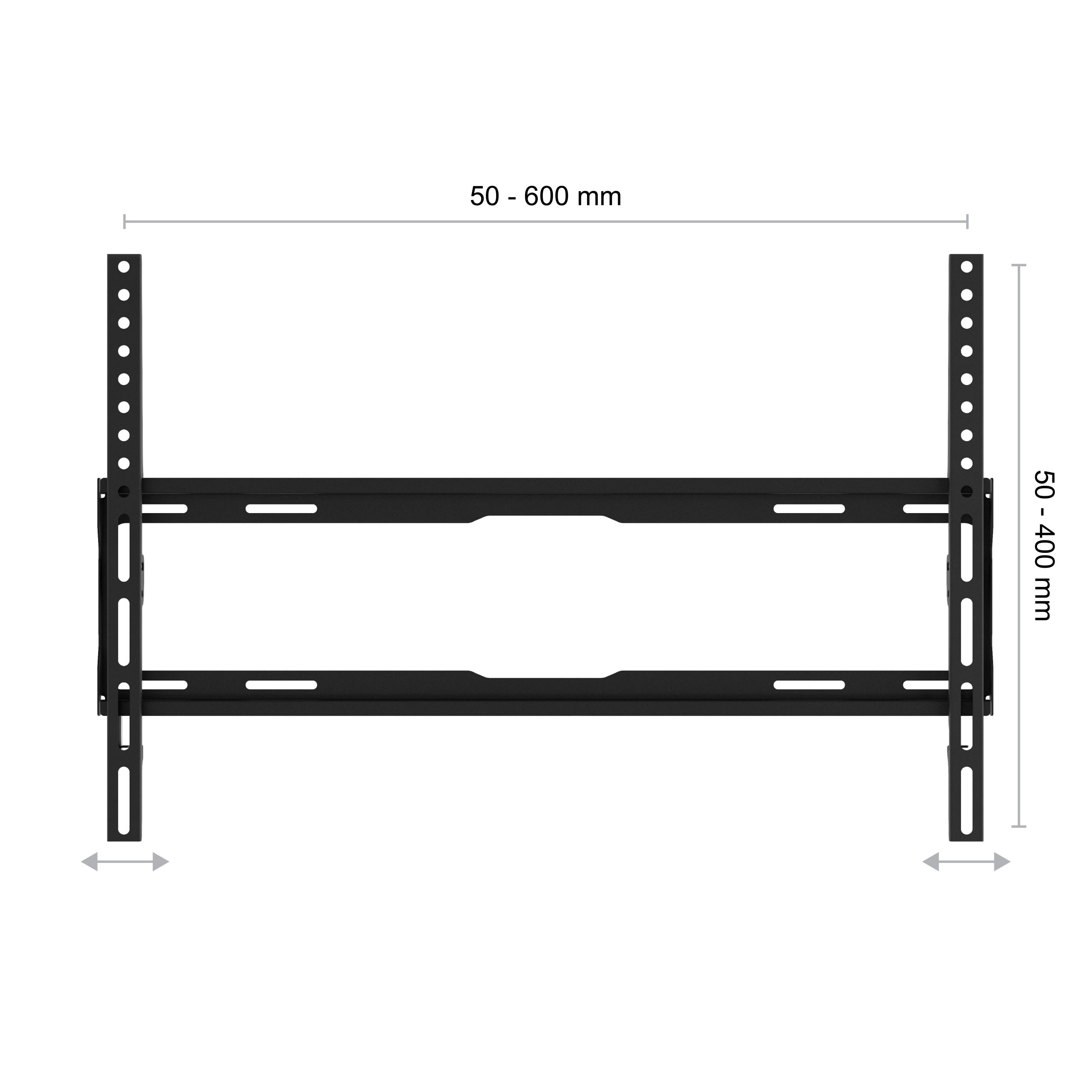

    Compatible VESA Sizes

    50 x 50mm, 75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm, 200 x 300mm, 300 x 100mm, 300 x 200mm, 300 x 300mm, 400 x 100mm, 400 x 200mm, 400 x 300mm, 400 x 400mm, 600 x 100mm, 600 x 200mm, 600 x 300mm, 600 x 400mm
    Mount Function

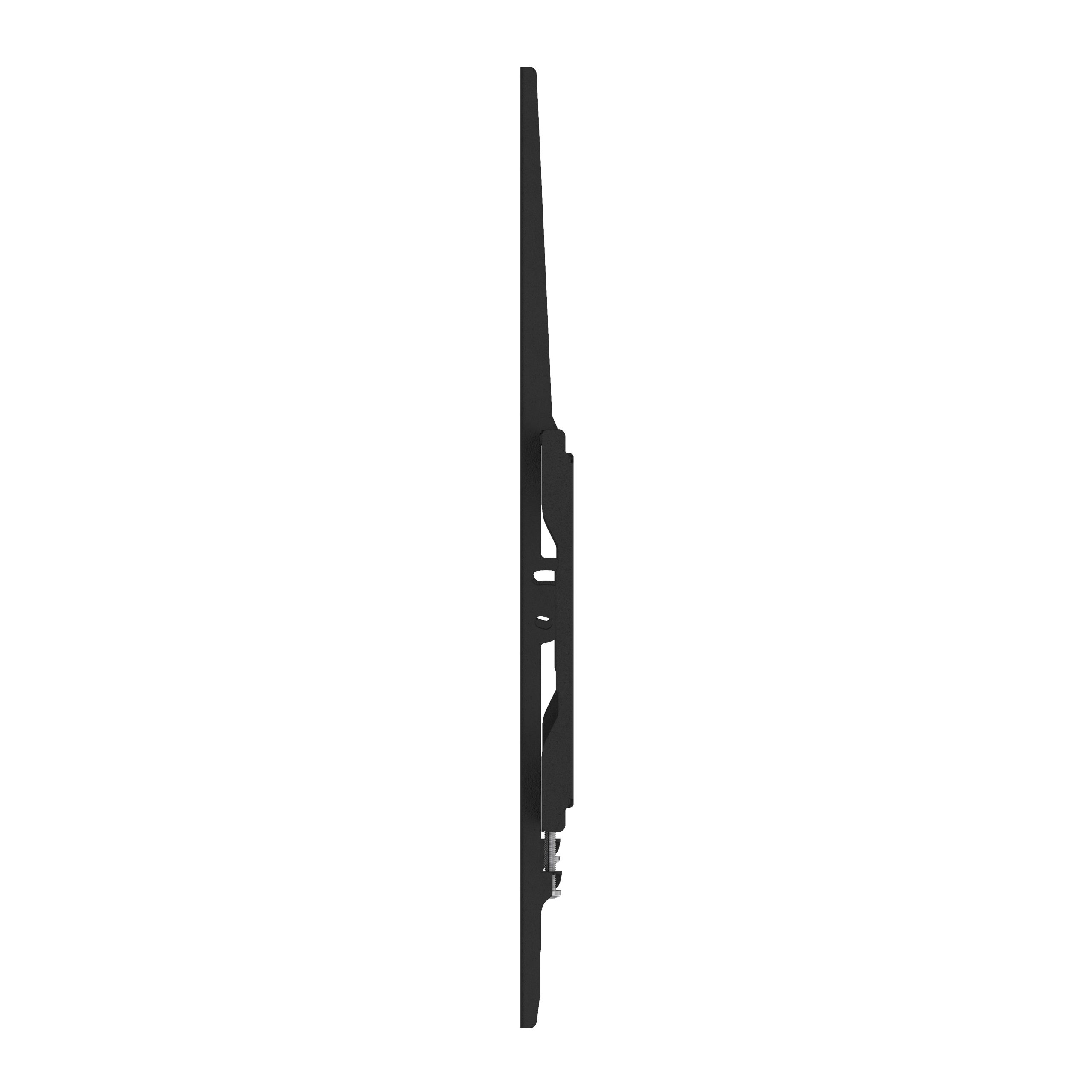

    Flat to Wall

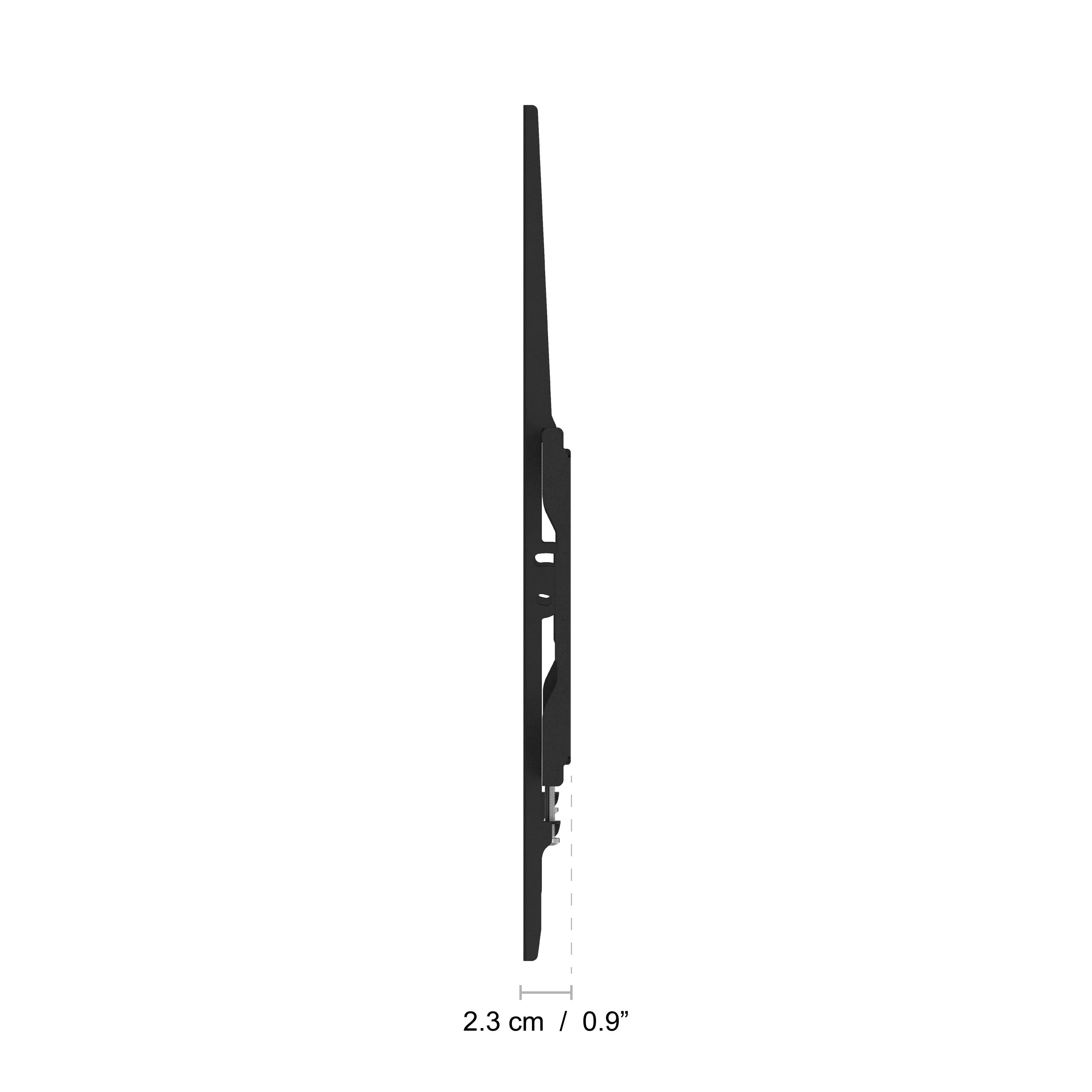

    Min Distance from Wall

    2.3cm / 0.9"
    Suitable Wall Types

    Solid Wall (Brick/Concrete), Wood Stud Wall

  4. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template (if available) or the top hole(s) of your wall plate

    cm

    above the floor, and mark your drill locations.

    Start Over

  5. Downloads

    Product Instructions

    Product Tech Sheet
