• 26 - 55" screens
  • 30kg / 66lb max
  • 400 x 400mm max vesa

SKU: AL440Q

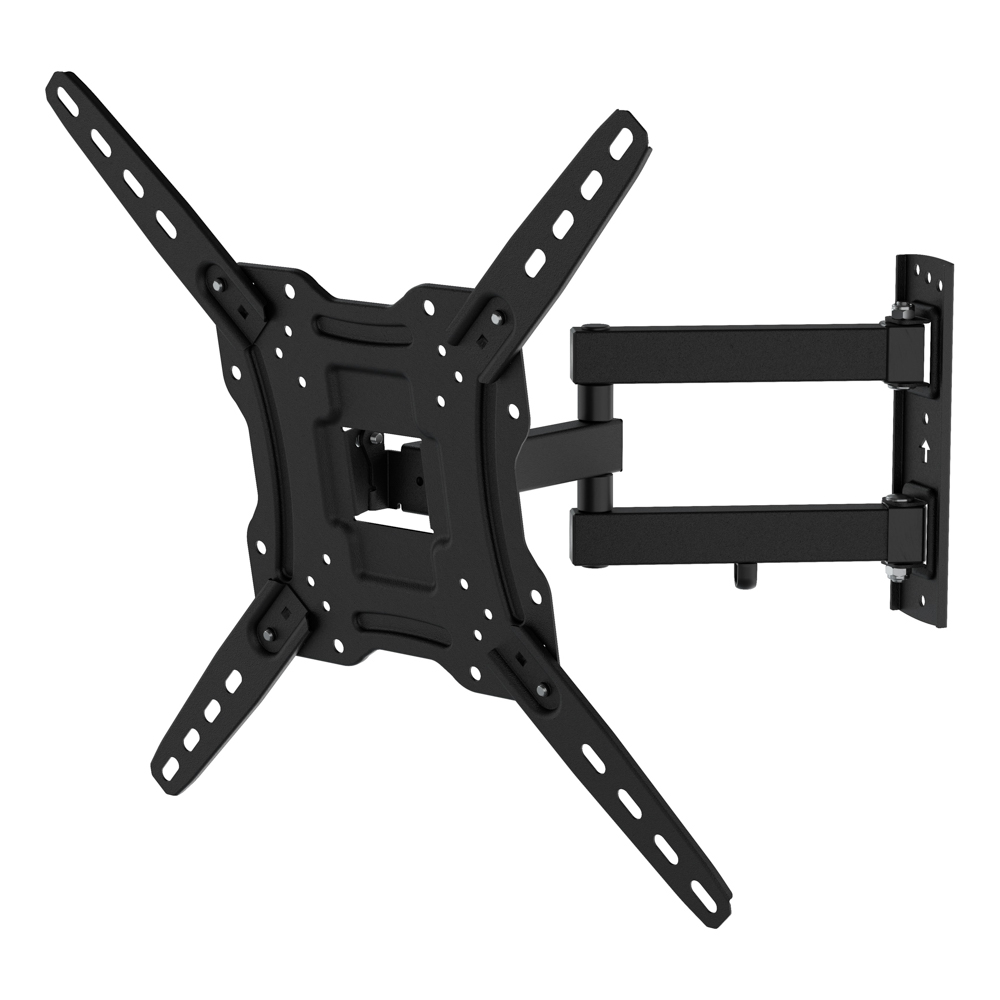

AL440Q: AVF Red Multi Position TV Wall Mount

  • Perfect for corners.
  • Fully adjustable.
  • Easy to install.
  • Fixings included for Wood Stud & Solid Walls.

Browse the full AVF Red range >

Need help with a product?

Open a Support Ticket >
  1. Product Details

    Multi-position bracket. Perfect for corner mounting. Reduces screen glare and reflections with tilting feature.

    Ability to adjust view from any angle. Helping improve viewing angle for raised and corner mounted TVs. Adjustable and multi-position helps avoid glare and reflections.

    Designed for TV’s up to 55″ and 30kg.

    Quick and easy to install – box includes everything needed to mount TV.

  2. Specifications

    Colour

    Black

    Screen Size

    26 – 55" / 66 – 140cm

    Max Screen Weight

    30kg / 66lb

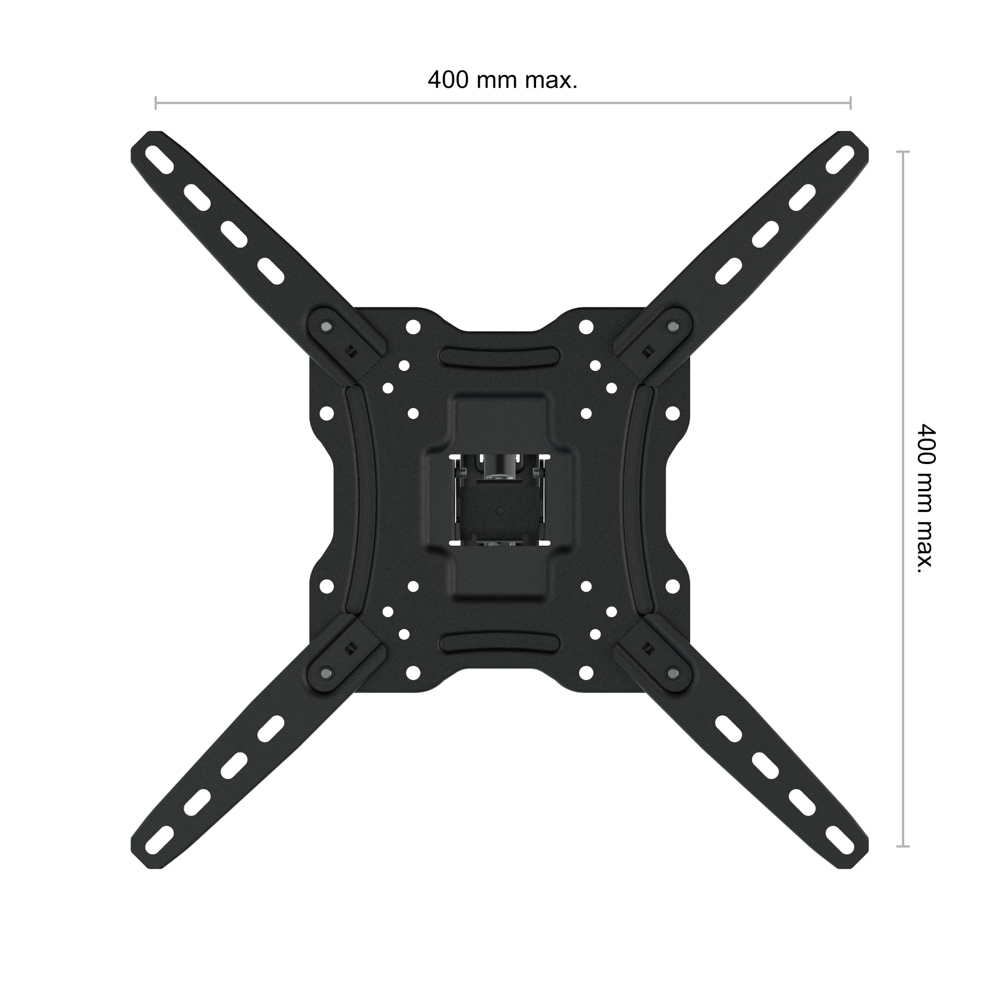

    Compatible VESA Sizes

    75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 300mm, 400 x 200mm, 400 x 400mm

    Mount Function

    Multi Position

    Screen Tilt (Downward)

    14°

    Screen Turn

    180°

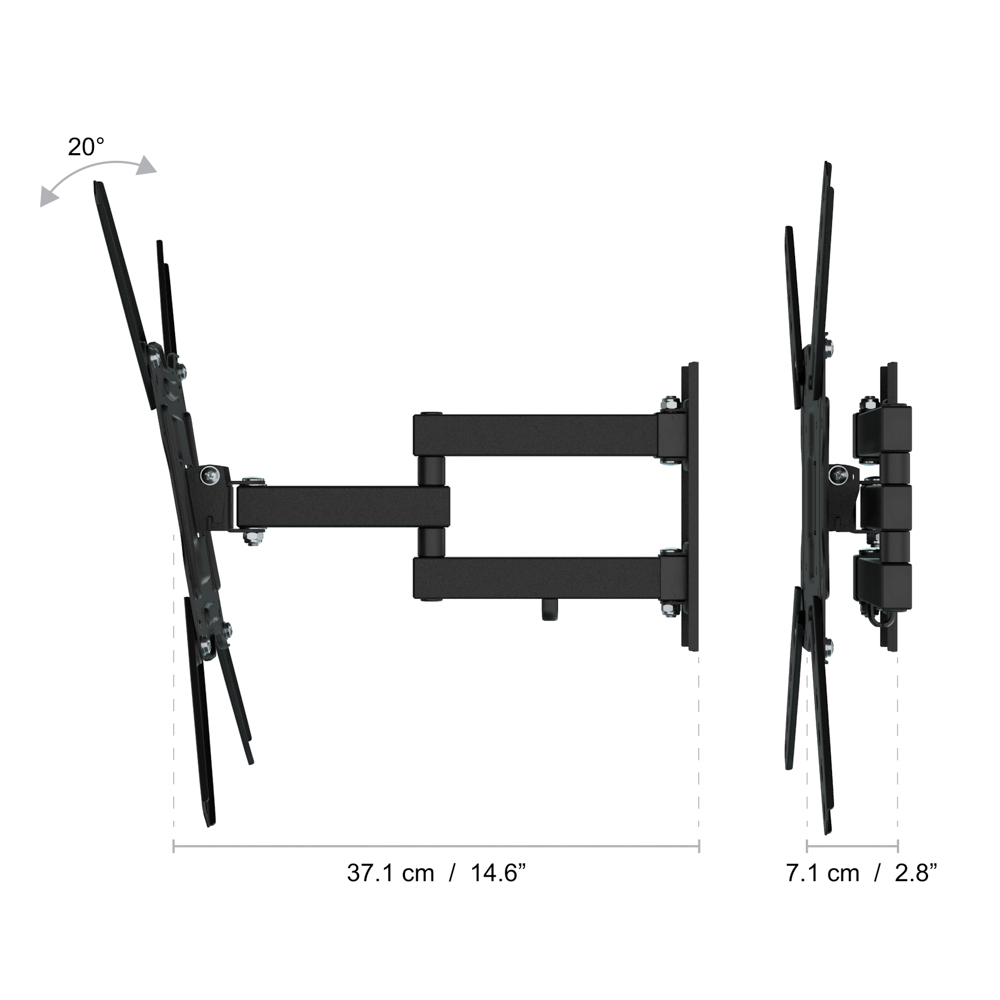

    Min Distance from Wall

    7cm / 2.76"

    Max Distance from Wall

    41.8cm / 16.46"

    Suitable Wall Types

    Solid Wall (Brick/Concrete), Wood Stud Wall

  3. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template (if available) or the top hole(s) of your wall plate

    cm

    above the floor, and mark your drill locations.

  4. Downloads
