• 40 - 80" screens
  • 50kg / 110lb max
  • 600mm x 400mm max vesa

SKU: EL804B-A

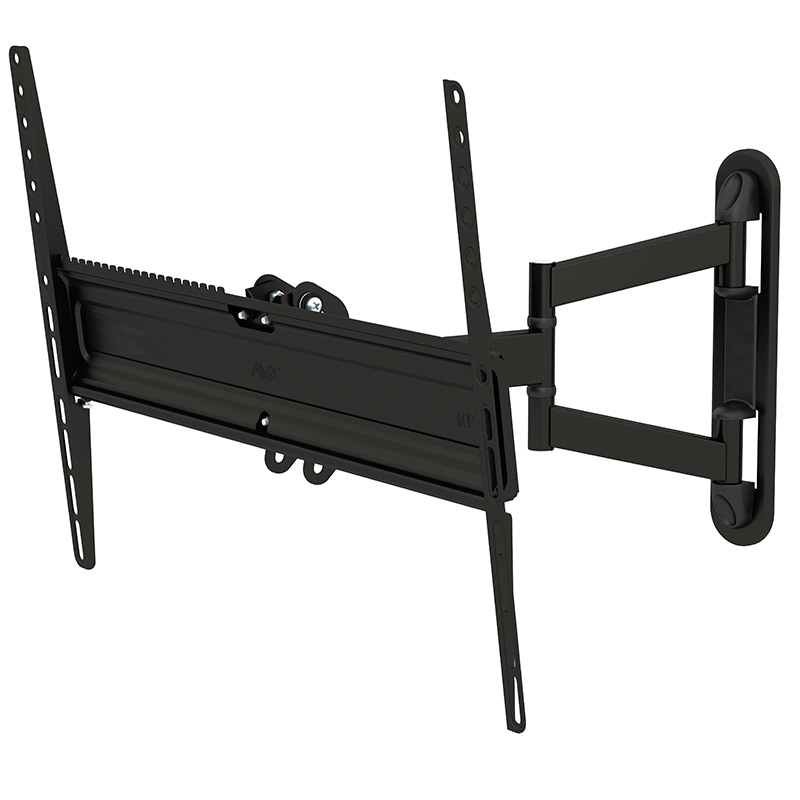

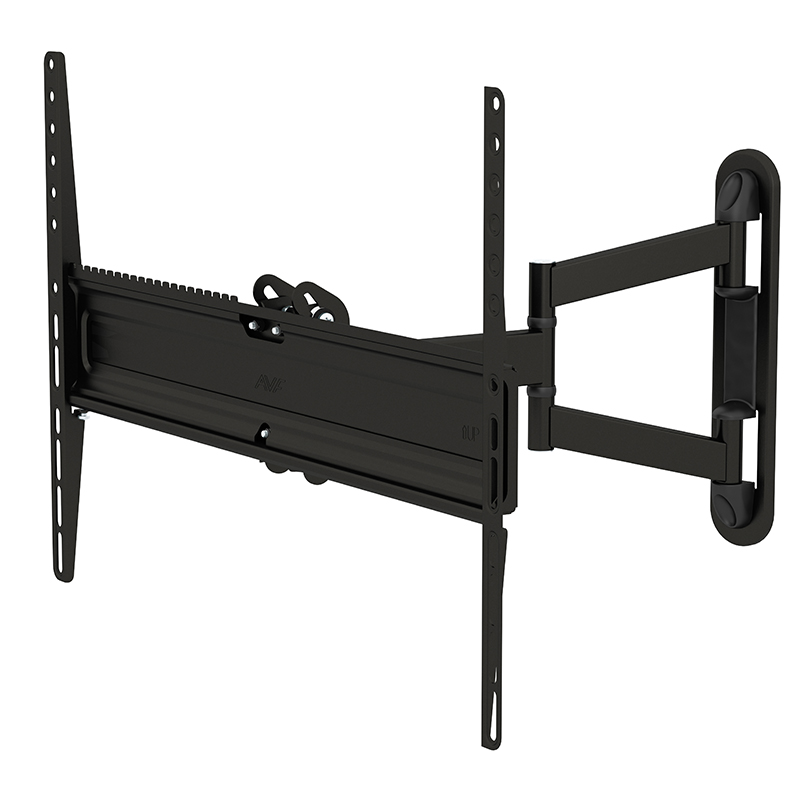

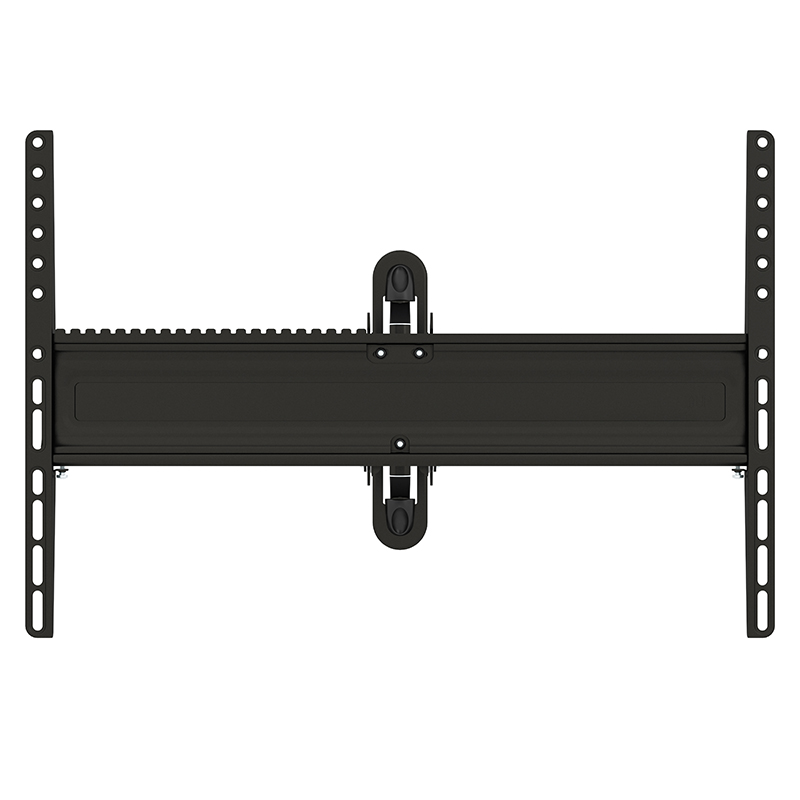

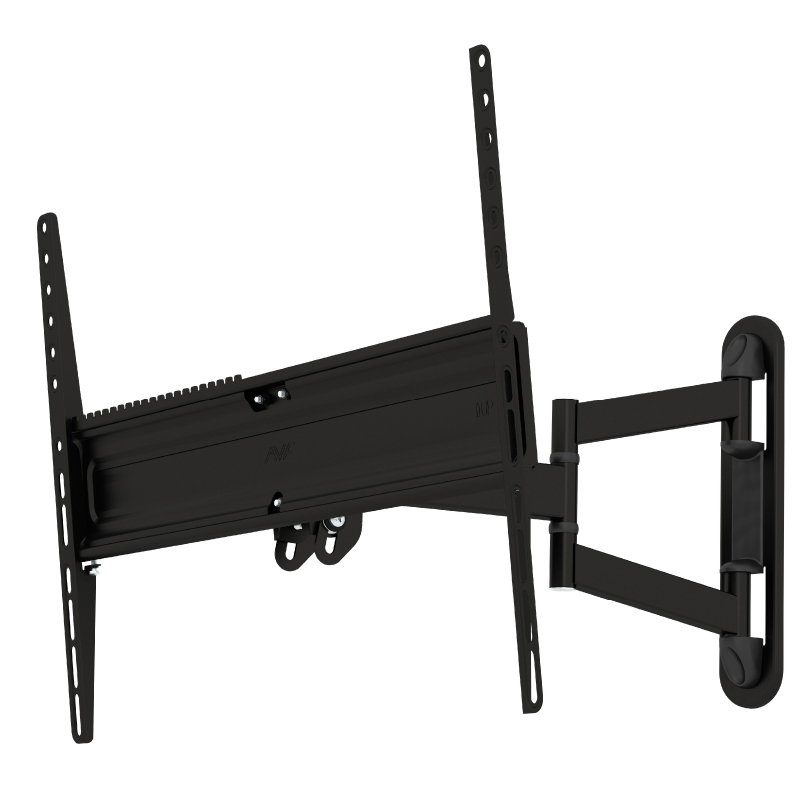

EL804B-A: ecomount Multi Position TV Wall Mount (600 VESA)

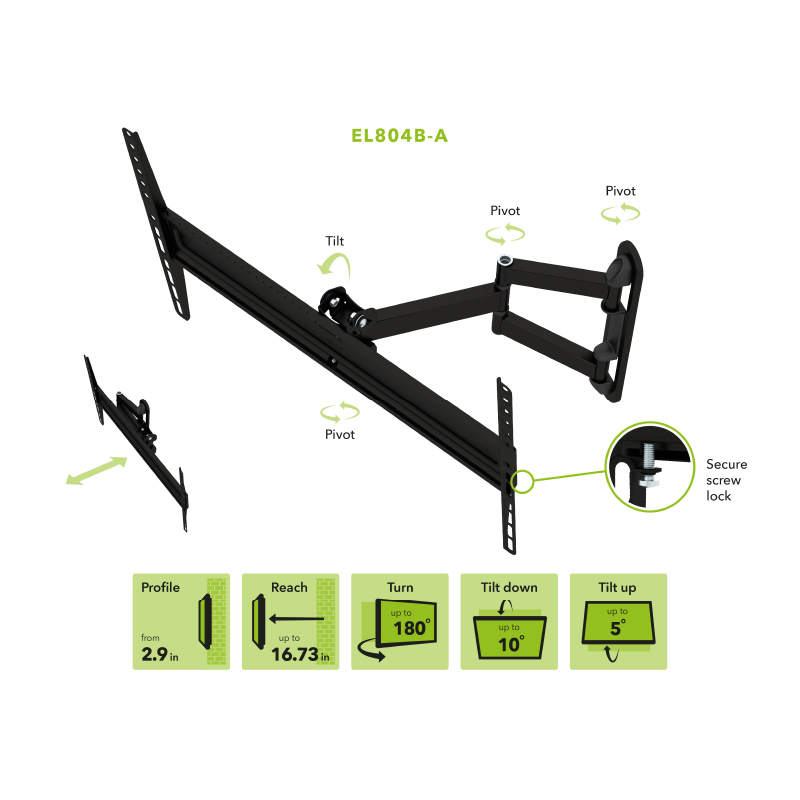

  • Secure screw lock.
  • Perfect for corners.

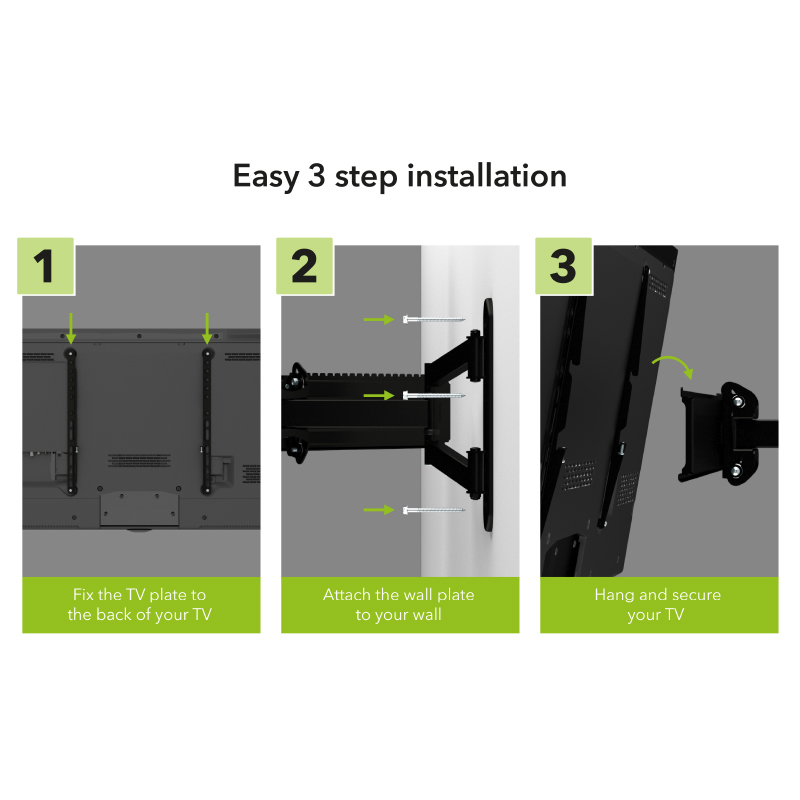

  • Easy to install.
  • Fixings for wood stud and solid walls included.
  • Fully adjustable.

Scroll down for more information

Need help with a product?

Open a Support Ticket >

  1. Product Details

    Our range of eco-mounts don’t compromise on structure, they’re all strong, secure and easy to install.

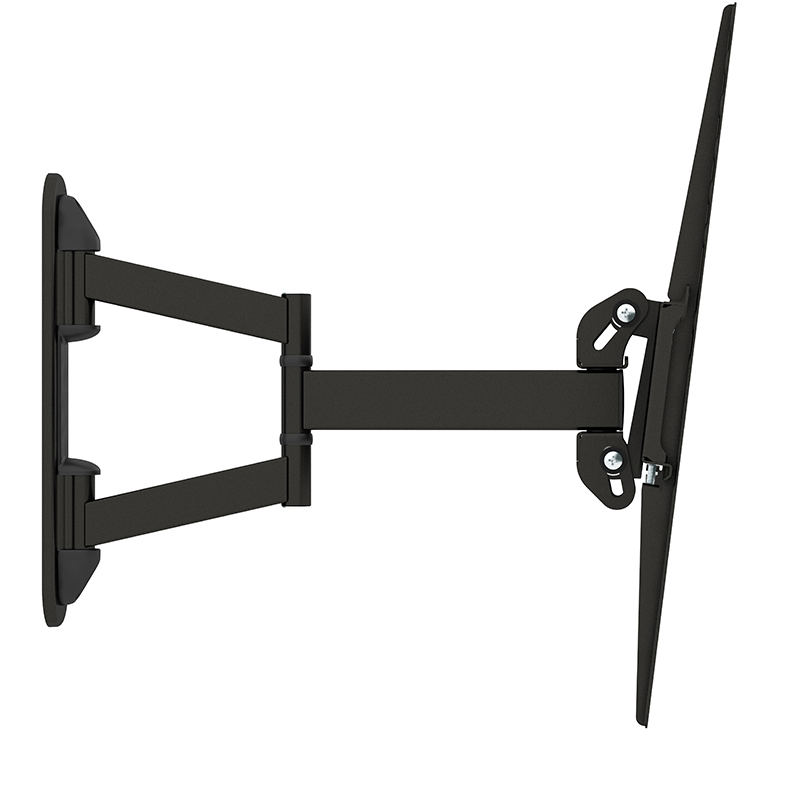

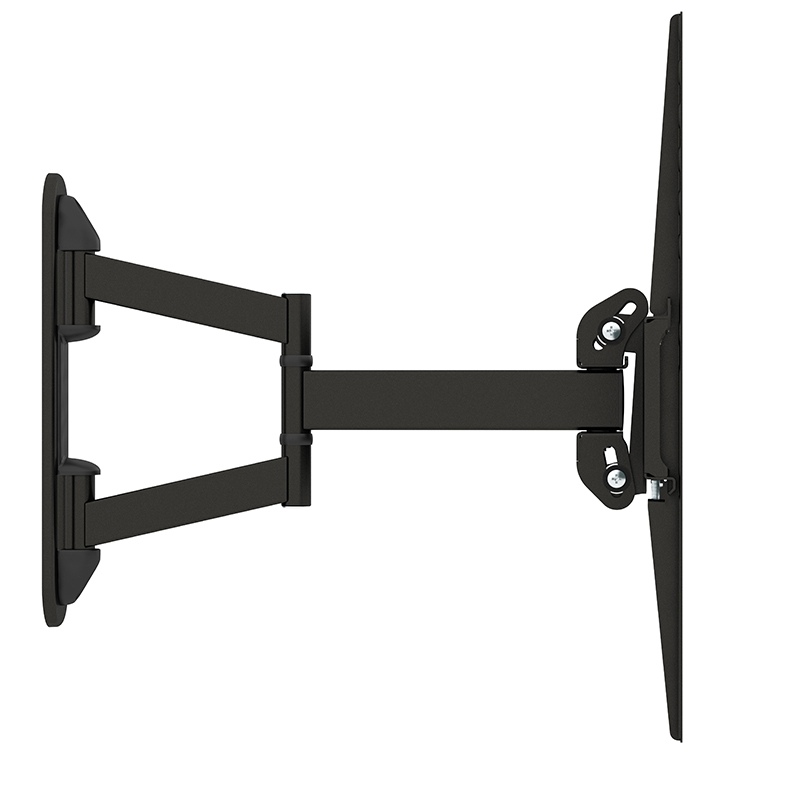

    EL804B is fully adjustable which makes it perfect for corners, or any position where you need to angle the screen from the wall. Gives you the freedom to move your room around without having to change the position of your TV, simply turn and tilt the mount to give you the best viewing experience. Suitable for TVs from 40in – 80in / 50kg.

    Suitable for installation on wood studs as well as solid walls, with fixing for both options included.

  2. Specifications

    Colour

    Black
    Screen Size

    40 – 80" / 102 – 203cm
    Max TV Weight

    50kg / 110lb

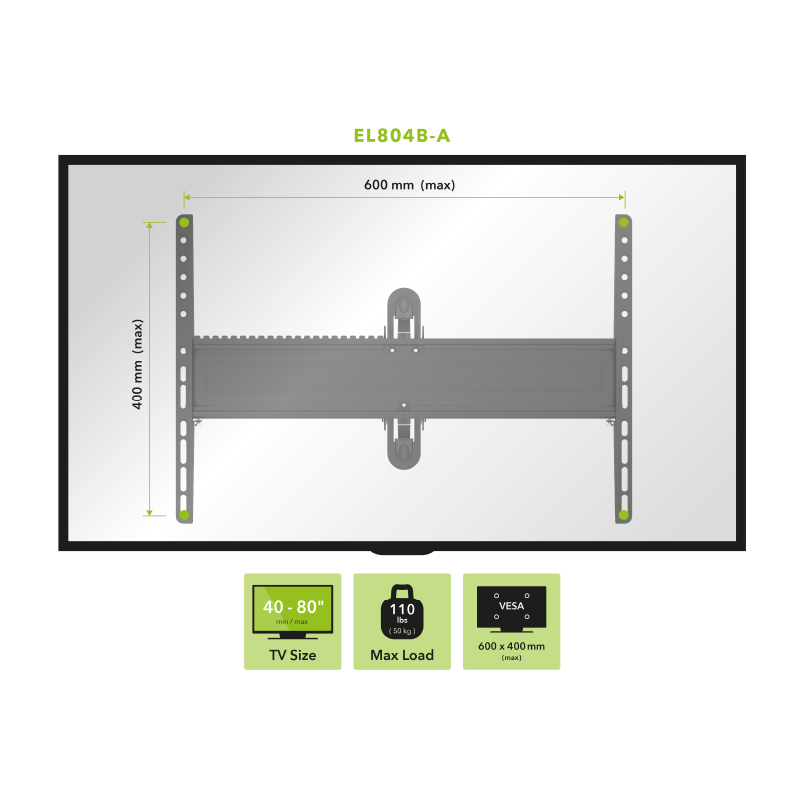

    VESA Compatible

    50mm x 50mm, 75mm x 75mm, 100mm x 100mm, 100mm x 200mm, 200mm x 100mm, 200mm x 200mm, 200mm x 300mm, 300mm x 100mm, 300mm x 200mm, 300mm x 250mm, 300mm x 300mm, 400mm x 100mm, 400mm x 200mm, 400mm x 300mm, 400mm x 350mm, 400mm x 400mm, 500mm x 300mm, 600mm x 100mm, 600mm x 200mm, 600mm x 300mm, 600mm x 400mm
    Function

    Multi Position
    Upward Tilt

    5°
    Downward Tilt

    10°
    Rotation

    180°

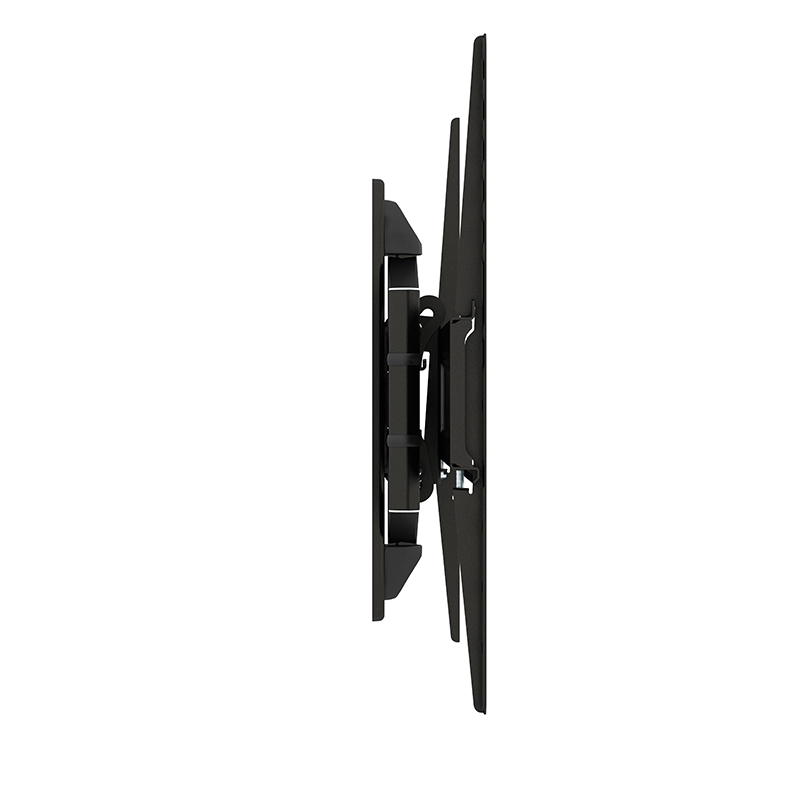

    Min Distance

    2.91" / 7.4cm
    Max Distance

    16.73" / 42.5cm

  3. Downloads

    Product Instructions

    Product Tech Sheet
