Product Details

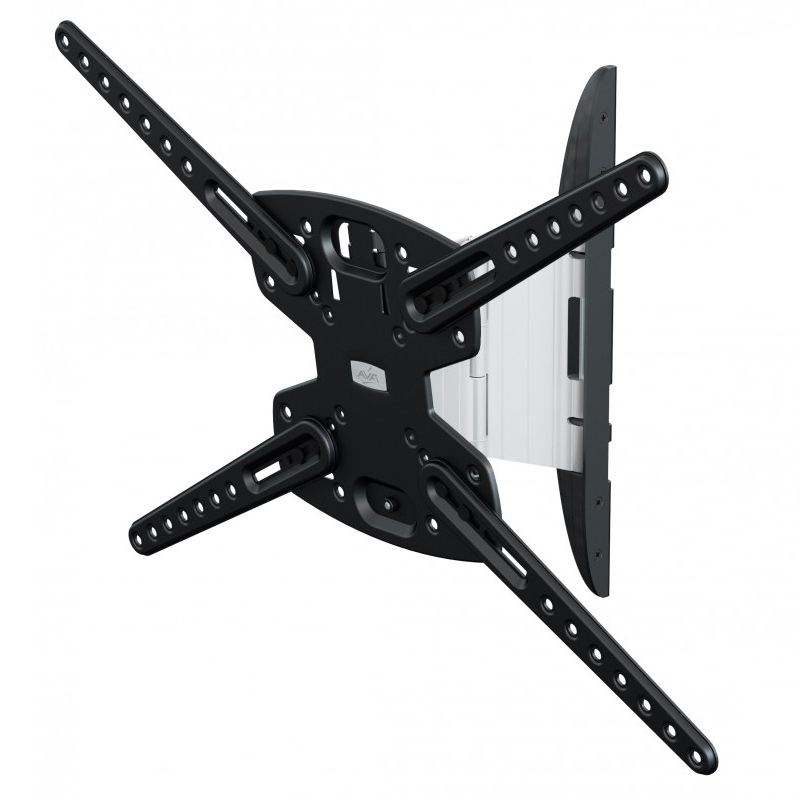

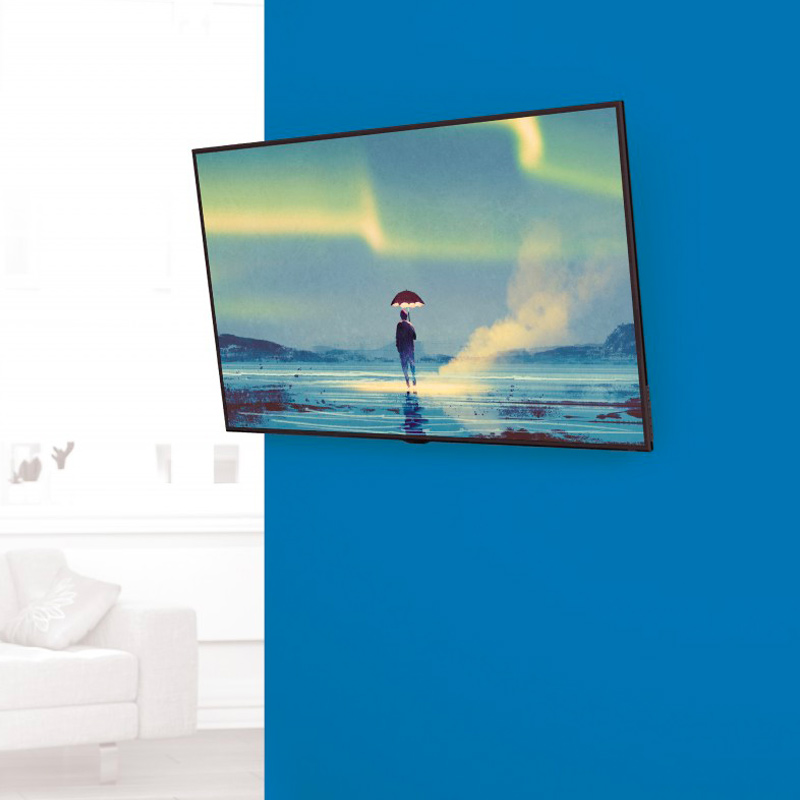

Tilt and Turn TV Wall Mounts offer the glare avoiding benefit of a tilting mount, and also add enhanced turn adjustment to improve the viewing angle even further.
A Tilt and Turn mount is ideal in large open plan spaces where the TV may be viewed at an angle.
The simple three step installation process with easy wall marking template and patented on the wall levelling function ensure a perfect finish.

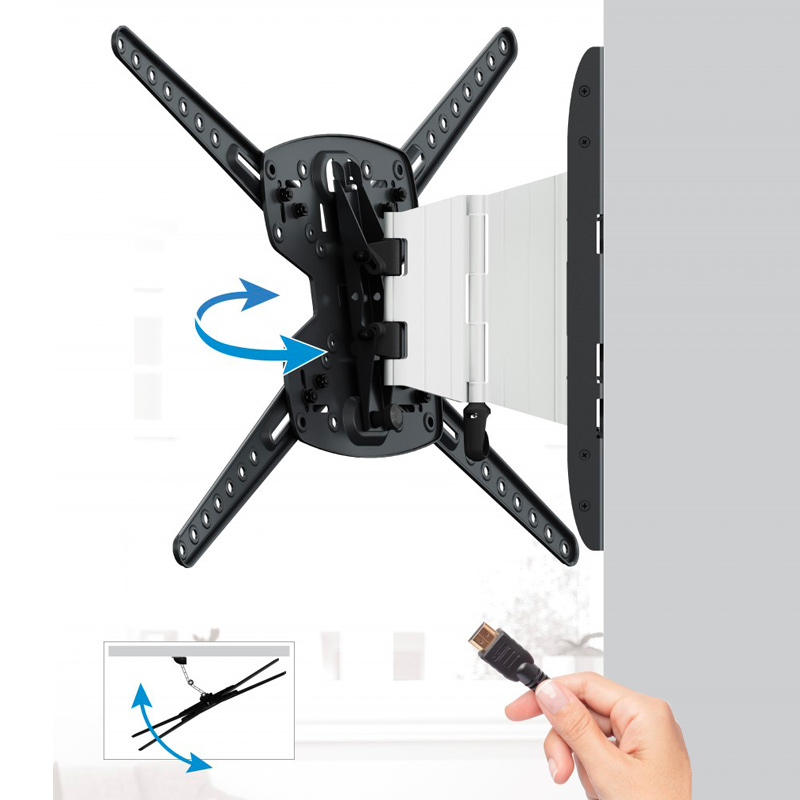

CABLE ACCESS is a handy feature when upgrading media devices or using temporary tech such as video streaming dongles or plug and play game systems.
-
Video
-
Specifications
Colour Black & Silver
Recommended Screen Size 37 – 100" / 94 – 254cm
Max Screen Weight 100kg / 220lb

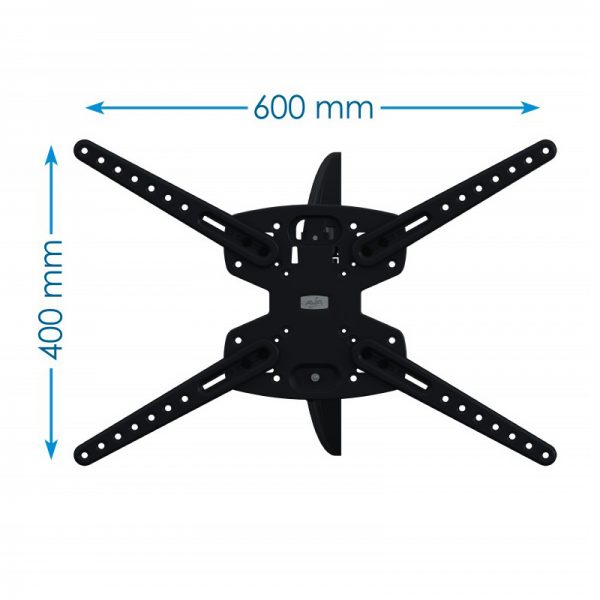

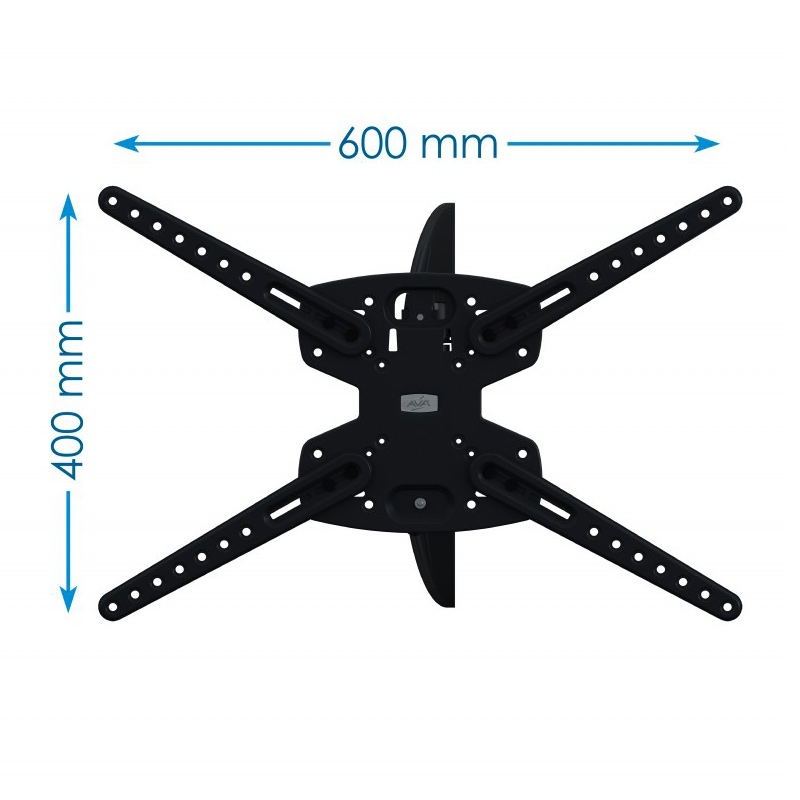

Compatible VESA Sizes 75 x 75mm, 100 x 100mm, 100 x 200mm, 200 x 100mm, 200 x 200mm, 200 x 300mm, 300 x 100mm, 300 x 200mm, 300 x 250mm, 300 x 300mm, 400 x 100mm, 400 x 200mm, 400 x 300mm, 400 x 350mm, 400 x 400mm, 500 x 300mm, 600 x 100mm, 600 x 200mm, 600 x 300mm, 600 x 400mm
Mount Function Tilt & Turn

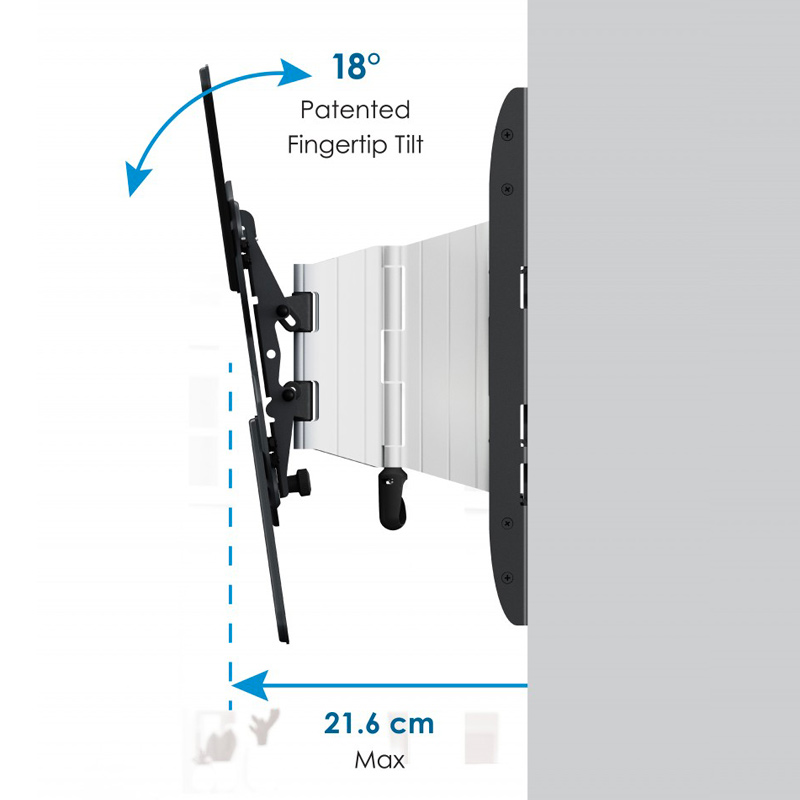

Screen Tilt (Upward) 5°
Screen Tilt (Downward) 13°
Screen Turn 60°

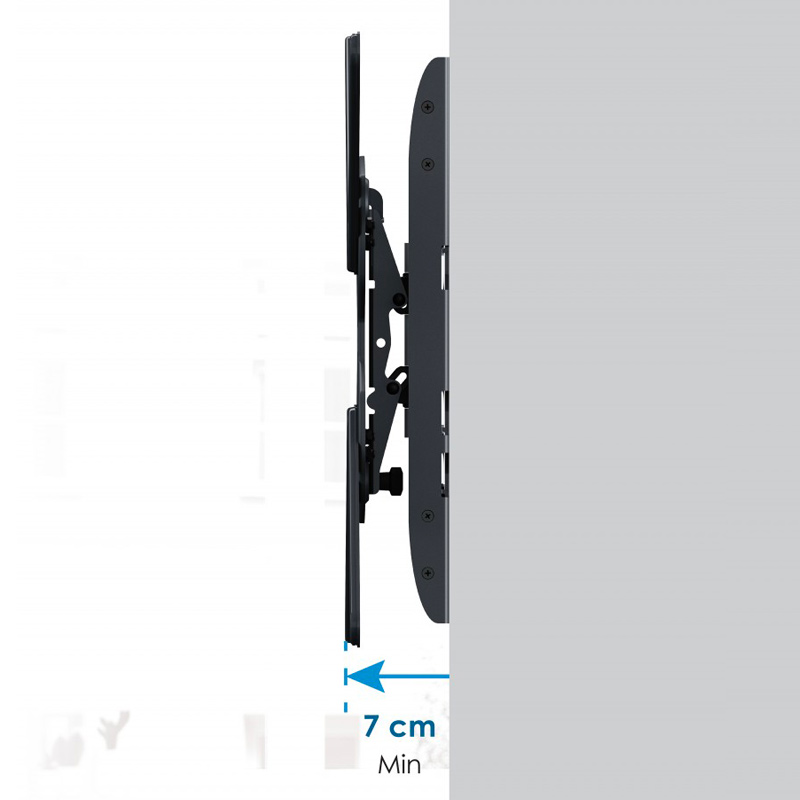

Min Distance from Wall 6.98cm / 2.75"
Max Distance from Wall 21.56cm / 8.5"
Soundbar Friendly with Soundbar Mounting Kit (sold separately)
On-Wall Levelling Yes
Patented Fingertip Tilt Yes
Tool-Free Adjustment Yes
Suitable Wall Types Solid Wall (Brick/Concrete), Wood Stud Wall
Warranty Period Lifetime
-

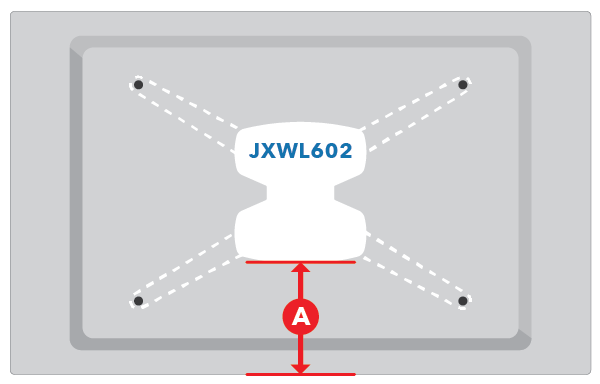

TV Height Calculator
-
Downloads
