• 12 - 40" screens
  • 20kg / 44lb max
  • 200 x 200mm max vesa

SKU: ACL224

ACL224: AVF Premier Multi Position TV Wall Mount

Scroll down for more information

Need help with a product?

Open a Support Ticket >

  1. Product Details

  2. Video

  3. Specifications

    Colour

    Black
    Screen Size

    up to 40" / 102cm
    Max Screen Weight

    20kg / 44lb

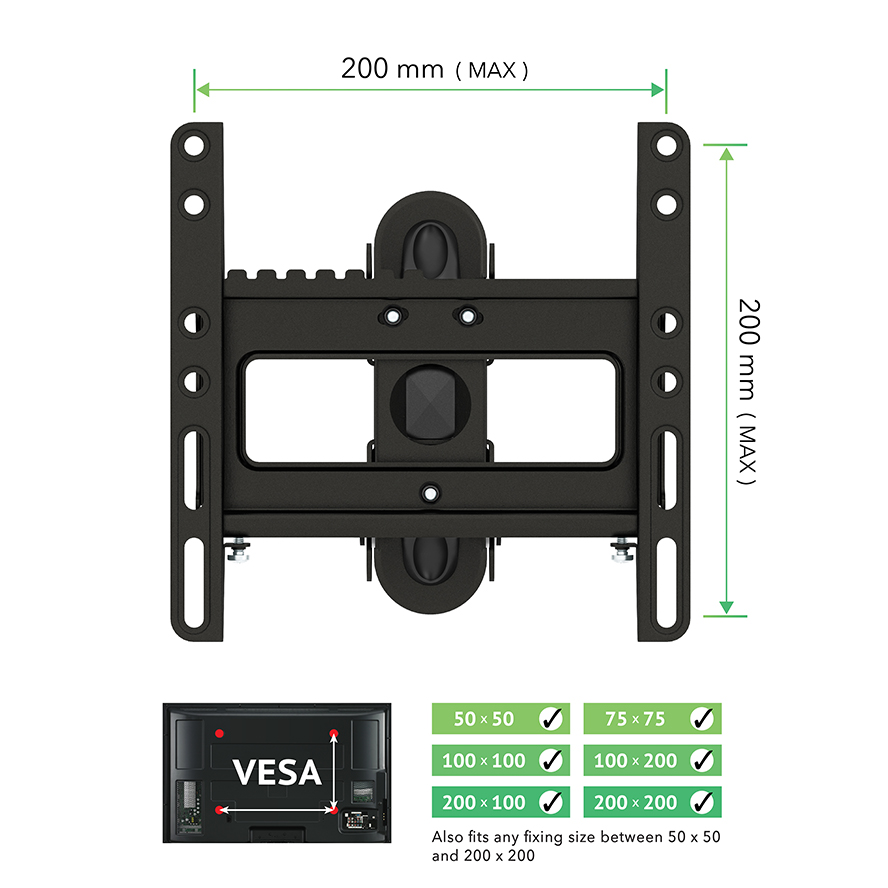

    Compatible VESA Sizes

    50 x 50mm, 75 x 75mm, 100 x 100mm, 100 x 200mm, 200 x 100mm, 200 x 200mm
    Mount Function

    Multi Position
    Screen Tilt (Upward)

    5°
    Screen Tilt (Downward)

    10°
    Screen Turn

    180°

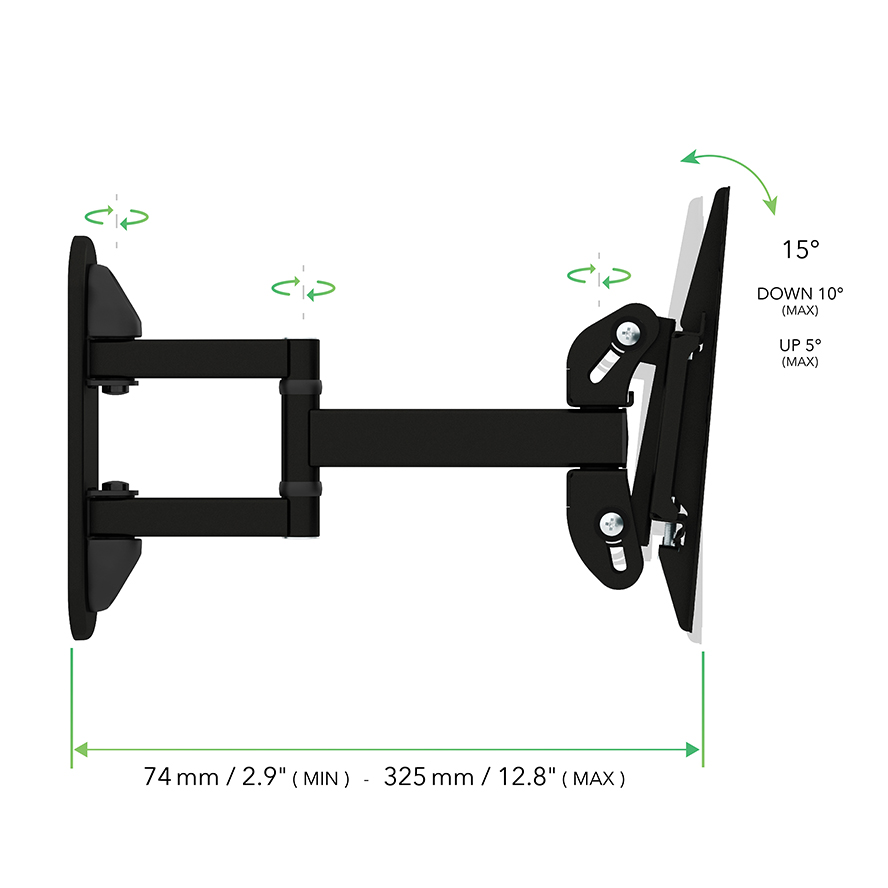

    Min Distance from Wall

    7.4cm / 2.9"
    Max Distance from Wall

    32.5cm / 12.8"
    Suitable Wall Types

    Solid Wall (Brick/Concrete), Wood Stud Wall

  4. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template (if available) or the top hole(s) of your wall plate

    cm

    above the floor, and mark your drill locations.

    Start Over

  5. Downloads

    Product Instructions

    Product Tech Sheet
