• 12 - 43" screens
  • 15kg / 33lb max
  • 200 x 200mm max vesa

SKU: AAL223

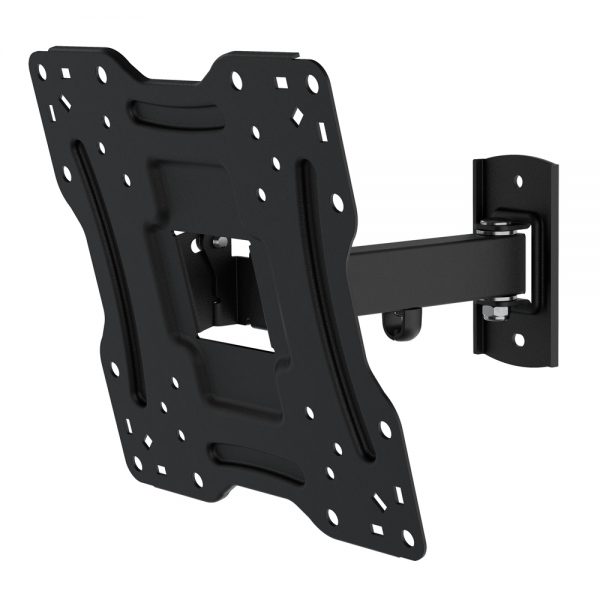

AAL223: AVF Standard Multi Position TV Wall Mount

Argos Cat No. 940/8586

Available to purchase on Argos.co.uk:



Scroll down for more information

Need help with a product?

Open a Support Ticket >

  1. Product Details

  2. Video

  3. Specifications

    Colour

    Black
    Recommended Screen Size

    up to 43" / 109cm
    Max Screen Weight

    15kg / 33lb

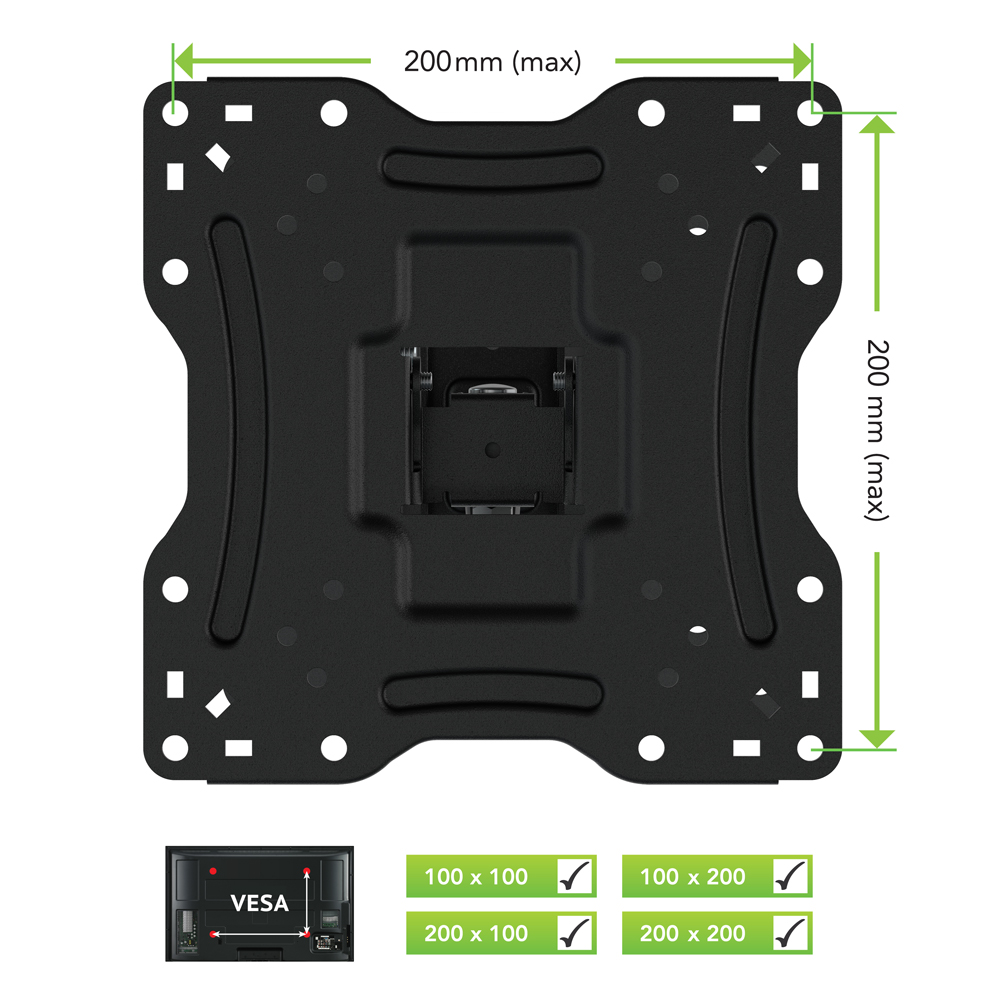

    Compatible VESA Sizes

    100 x 100mm, 100 x 200mm, 200 x 100mm, 200 x 200mm
    Mount Function

    Extendable Tilt & Turn

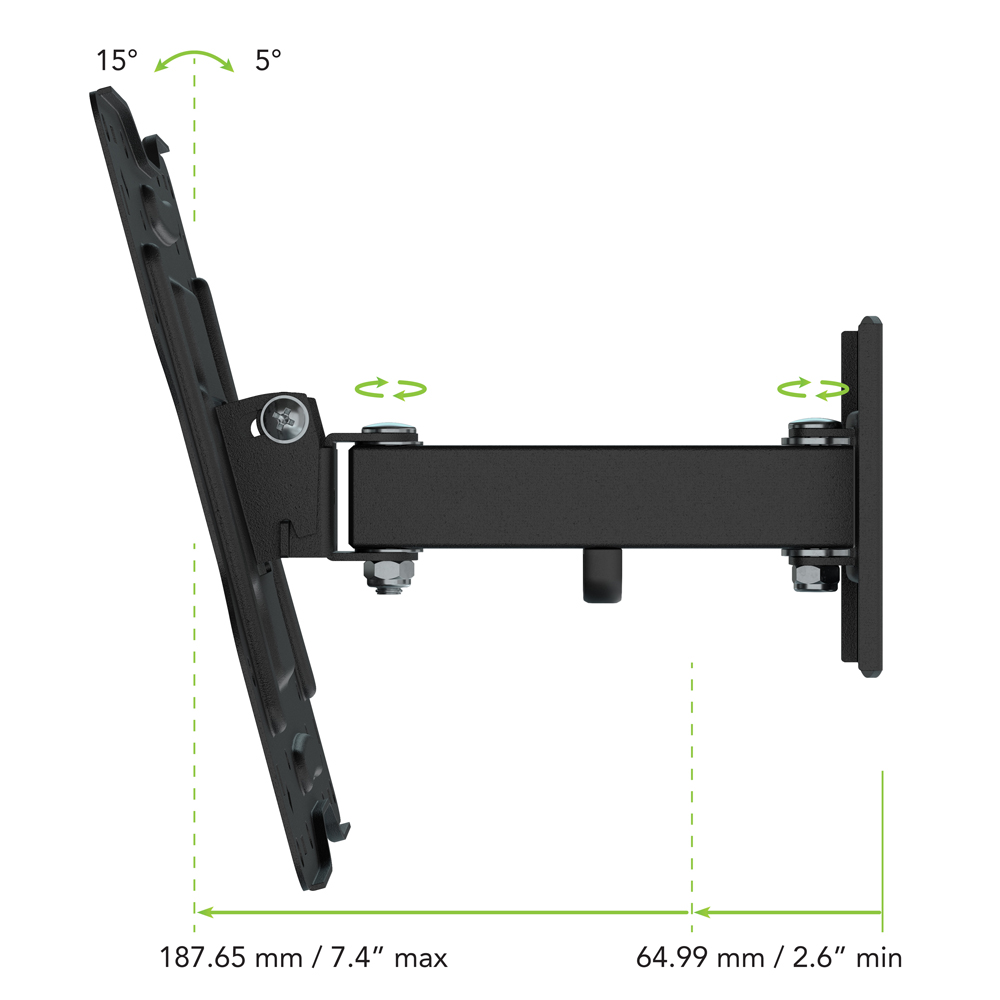

    Screen Tilt (Upward)

    5°
    Screen Tilt (Downward)

    15°
    Screen Turn

    180°
    Min Distance from Wall

    6.5cm / 2.56"
    Max Distance from Wall

    18.7cm / 7.36"
    Suitable Wall Types

    Solid Wall (Brick/Concrete), Wood Stud Wall

  4. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

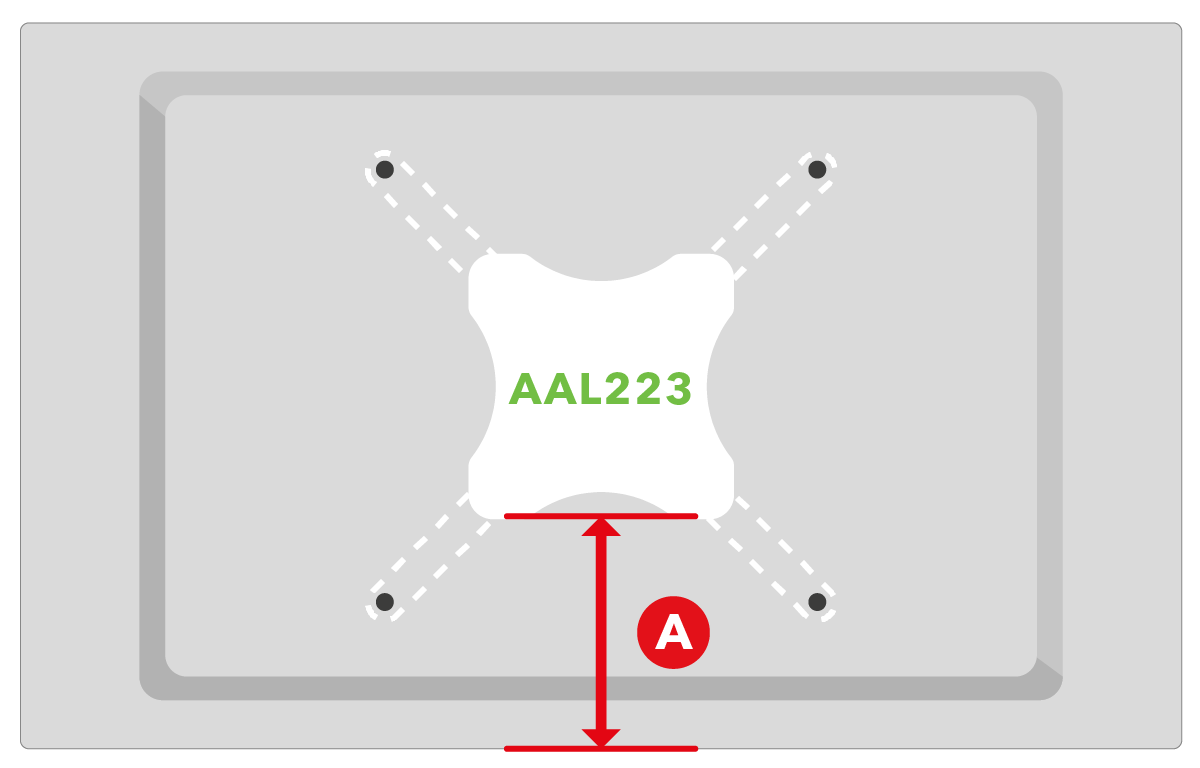

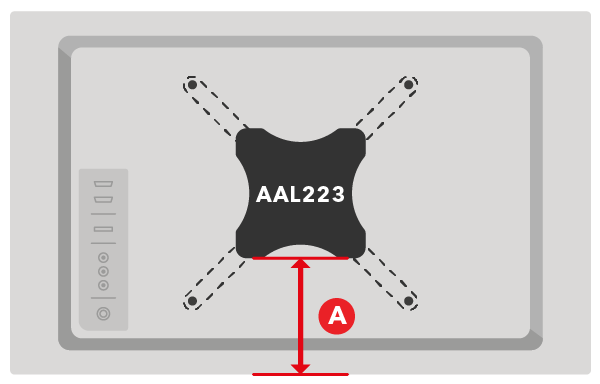

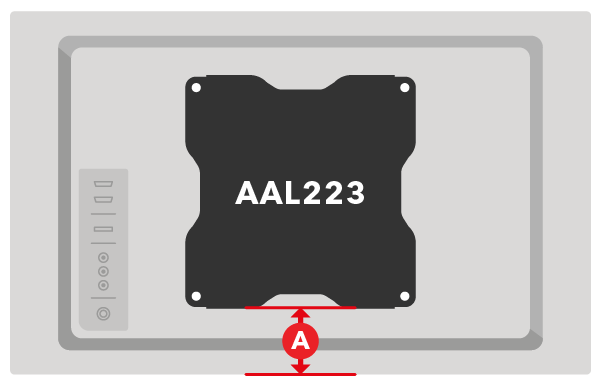

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template (if available) or the top hole(s) of your wall plate

    cm

    above the floor, and mark your drill locations.

    Start Over

  5. Downloads

    Product Instructions

    Product Tech Sheet
