• 32 - 100" screens
  • 68 kg / 150 lb max
  • 600mm x 400mm max vesa

SKU: CXWL682-F

CXWL682-F: Tilt and Turn TV Wall Mount

Folds flat, tilts and turns

  • Avoid screen glare and improve viewing angle
  • Easy ongoing cable access
  • Includes single wall stud option
  • UL Certified + 10 year warranty

Installation is easy

Scroll down for more information

Need help with a product?

Open a Support Ticket >

  1. Product Details

    Improve your view and avoid reflections

    with easy ongoing cable access

    Fold flat, tilt and turn your screen

    Great for open plan living spaces

    Turn your screen
    + Tilt up to 13° down / 5° up

    Avoid light glare and on-screen reflections with easy no-tools tilt.
    (Degrees of turn will depend on screen size)

    Low 6.3 cm / 2.48 in profile
    + Extend out up to 16 cm / 6.26 in.

    Easily adjust your screen position to view from any angle. Great for open plan living spaces.

    Mount with confidence

    Independently tested and certified, and includes AVF 10-year warranty (see in pack for details).

    TV Compatibility

    Holds 32 – 100 in. / 81 cm – 2.54 m TVs, weighing up to 68 kg / 150 lb.
    Compatible with VESA fixing sizes from 75 x 75 mm to 600 x 400 mm.

    Folds flat, tilts and turns

    Improve your viewing angle and avoid reflections with no-tools adjustability.

    Easy ongoing cable access

    Extend out for easy ongoing access to the back of your TV – ideal for upgrading equipment or for temporary use devices such as streaming sticks, USB drives or plug & play game consoles.

    Double Stud Wall Plate

    Mount to wood stud or solid walls and use Easy Lateral Shift feature for precise on-wall screen positioning. Best for large TVs, in Living Rooms and open plan spaces.
    (for mounting on wood studs and solid walls)

    Single Stud Wall Plate

    A smaller, more discreet on wall footprint, best for smaller TVs, in Bedrooms and Kitchens.
    (for mounting on wood studs walls only)

    Installation made easy

    Our easiest ever Tilt & Turn TV Wall Mount with consumer-friendly, intuitive features

    Pre-installed VESA TV interface

    With the TV adapters pre-installed on the front plate out of the box, simply loosen, adjust to your TV and fix in place.

    Handy Wall Marking Template

    Mark your drill holes with ease and ensure your screen is mounted at the desired height with our online Height Calculator tool.

    TV Height Calculator

    Easy to hook on and secure

    Simple, no fuss TV hanging.

    Precise TV positioning

    Simply hook on, then slide along the double stud wall plate to your desired position and lock in place.

    On-wall screen levelling

    Tweak your screen without removing your TV from the wall.

    Easy ongoing cable access

    Extend out for easy ongoing access to the back of your TV – ideal for upgrading equipment or for temporary use devices such as streaming sticks, USB drives or plug & play game consoles.

    1. VESA refers to four circular threaded holes, positioned in a square/rectangular pattern on the back of most TVs. VESA ‘size’ is the distance in millimeters, between these holes. Measured horizontally, then vertically, from hole center to hole center.

    2. You can install your TV with confidence – all our products are thoroughly tested to ensure their performance and safety, and still give you the manoeuvrability you need. Always ensure your TV is within the maximum weight listed for your mount.

    3. Fixings are included for Solid and Wood Stud walls.

    4. If you have any questions or need something explaining, feel free to give us a call. The number is on the front of the instruction booklet, we will be happy to help.

  2. Video

  3. Specifications

    Costco ITM

    7772021
    Fits flat screen sizes

    32 – 100 in. (81 cm – 2.54 m)
    Maximum TV weight

    68 kg / 150 lb
    Minimum Distance To Wall

    6.3 cm / 2.48 in.
    Extends Out To

    16 cm / 6.26 in.
    Downward Tilt

    up to 13°
    Upward Tilt

    up to 5°
    Rotation

    Screen size dependant
    Post install Leveling

    Yes
    Finish Colour

    Black
    Standard VESA compatibility

    75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 100mm, 300 x 200mm, 300 x 300mm, 400 x 100mm, 400 x 200mm, 400 x 300mm, 400 x 400mm, 600 x 100mm, 600 x 200mm, 600 x 300mm, 600 x 400mm
    Non Standard VESA compatibility

    Any Fixings from 75 mm to 600 mm wide and from 75 mm to 400 mm high

  4. TV Height Calculator

    TV Height Calculator

    Find out where you should drill to achieve your desired TV Height, in two simple steps.

    You will need to attach the required parts to the back of your TV before calculating.

    Please select a product version above

    Step 1

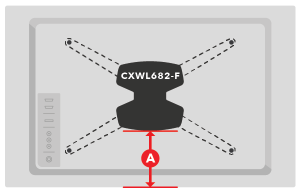

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template or the top of the hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.

    Start Over

  5. Downloads

    Product Instructions

    Product Tech Sheet
