• 32 - 90" screens
  • 60 kg / 132 lb max
  • 600 x 400 mm max vesa

These products are discontinued and may longer be available for purchase, but you can still find specification and support info below.

SKU: CXWL672-F

CXWL672-F: TV Wall Mount – Tilt and Turn

Costco ITM. 7777672</p

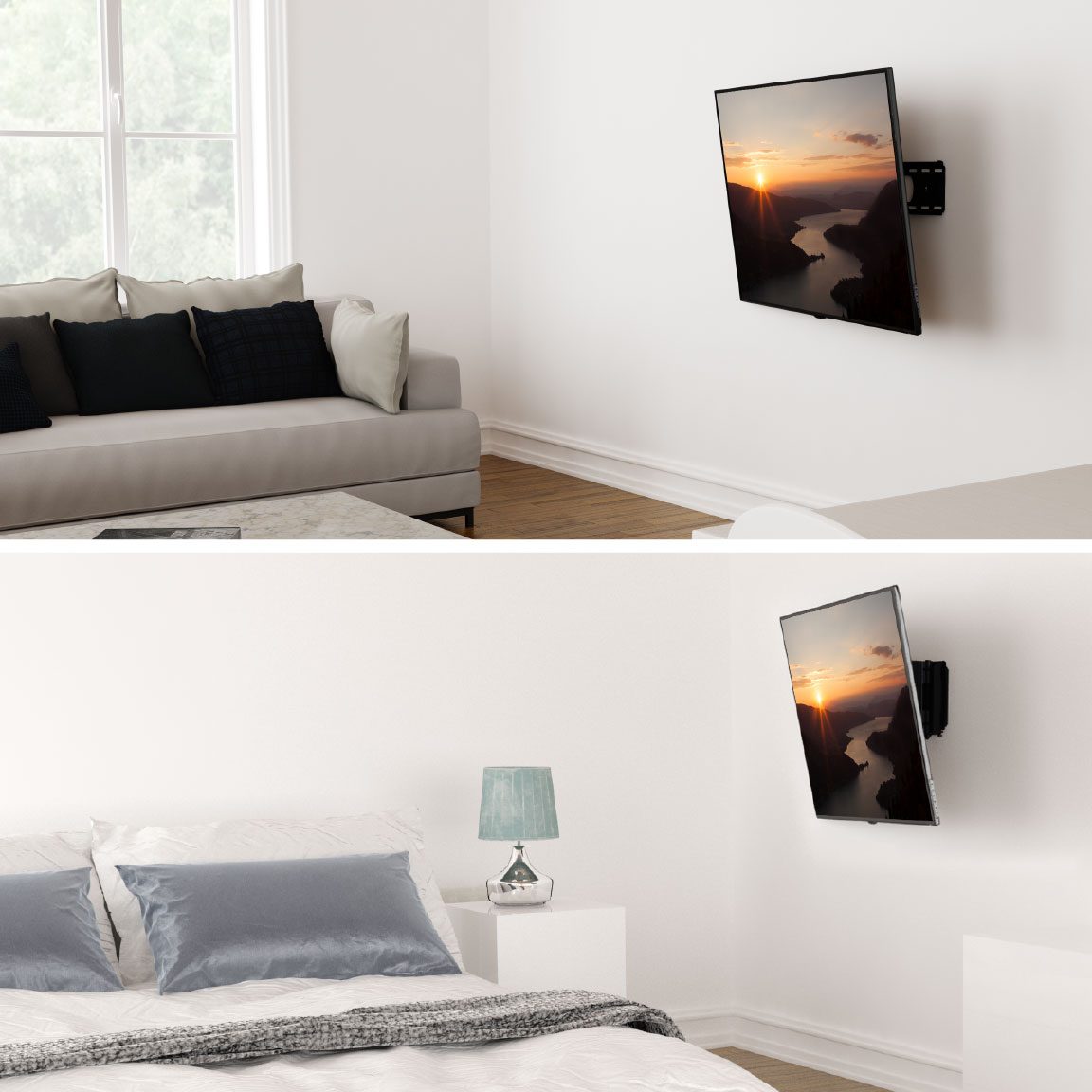

  • Folds flat, tilts and turns
  • Includes single wall stud option
  • Avoid screen glare and improve viewing angle
  • No tools fingertip tilt mechanism
  • “On-the-wall” screen leveling adjustment
  • Easy lateral shift
  • Easy to install
  • UL Certified
  • 10 Year Warranty
  • TV Height Calculator >

Scroll down for more information

Need help with a product?

Open a Support Ticket >

  1. Product Details

    This Tilt and Turn TV Wall Mount will enable you to improve your viewing angle and avoid light glare and reflections on your screen.
    Extend out for easy ongoing access to the back of your TV – ideal for upgrading equipment or for temporary use devices such as streaming sticks, USB drives or plug & play games consoles.

    Special features such as the included wall template, online TV Height Calculator tool and patented ‘On The Wall Screen Leveling’ function make installation a breeze.
    Two stud wall mounting with sideways movement means you can easily achieve your desired TV position along the wall.

    Screws for the TV, wood studs and solid walls are provided in the box.

    ‍CXWL672-F has been independently tested and certified by UL to hold flat and curved TVs from 32 in. / 81 cm all the way up to 90 in. / 2.29 m and weighing up to 60 kg / 132 lb.

  2. Video Guide

  3. Specifications

    Costco ITM.

    7777672
    Screen Size

    32 – 90 in. (81 cm – 2.29 m)
    Max Screen Weight

    60 kg / 132 lb
    Compatible VESA Sizes

    75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 300 x 100 mm, 300 x 200 mm, 300 x 250 mm, 300 x 300 mm, 400 x 100 mm, 400 x 200 mm, 400 x 300 mm, 400 x 350 mm, 400 x 400 mm, 500 x 300 mm, 600 x 100 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm
    Non-standard VESA Compatibility

    Any fixings from 75 mm to 600 mm wide and from 75 mm to 400 mm high
    Suitable Wall Types

    Solid Wall (Brick/Concrete), Wood Stud Wall
    Min Distance from Wall

    8.4 cm / 3.3 in.
    Max Distance from Wall

    22.97 cm / 9 in.
    Screen Tilt (Downward)

    up to 13°
    Screen Tilt (Upward)

    up to 5°
    Screen Turn

    Screen size dependant
    On-Wall Levelling

    Yes
    Cable Management

    Yes
    Colour

    Black
    UL Certified

    Yes
    Warranty

    10 Years

  4. TV Height Calculator

    TV Height Calculator

    Find out where you should drill to achieve your desired TV Height, in two simple steps.

    You will need to attach the required parts to the back of your TV before calculating.

    Please select a product version above

    Step 1

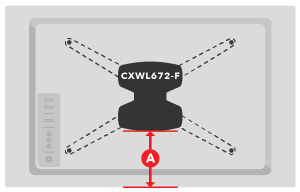

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template or the top hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.

    Start Over

  5. Downloads

    Product Instructions

    Product Tech Sheet
