• 32 - 90" screens
  • 68 kg / 150 lb max
  • 600 x 400 mm max vesa

SKU: CXNL665-F

CXNL665-F: TV Wall Mount – Multiposition

Costco ITM. 7777665

  • Unlimited positioning – Folds flat, extends out, tilts and turns
  • Perfect for corners
  • Avoid screen glare and improve viewing angle
  • No tools fingertip tilt mechanism
  • “On-the-wall” screen leveling adjustment
  • Easy lateral shift
  • Easy to install
  • UL Certified
  • 10 year warranty
  • TV Height Calculator >

Scroll down for more information

Need help with a product?

Open a Support Ticket >

  1. Product Details

    This Multiposition TV Wall Mount is engineered to provide the ultimate flexible TV viewing experience.

    Incredible reach, swivel and tilt functions mean you can always achieve a superb view from any angle, great for open plan living or rooms with multiple seating areas. The articulating arms also make this product perfect for mounting TVs in corners.
    Extend out for easy ongoing access to the back of your TV – ideal for upgrading equipment or for temporary use devices such as streaming sticks, USB drives or plug & play games consoles.
    Special features such as the included wall template, online TV Height Calculator tool and patented ‘On The Wall Screen Leveling’ function make installation a breeze. Two stud wall mounting with sideways movement means you can easily achieve your desired TV position along the wall.

    Screws for the TV, wood studs and solid walls are provided in the box.

    ‍CXNL665-F has been independently tested and certified by UL to hold flat and curved TVs from 32 in. / 81 cm all the way up to 90 in. / 2.29 m and weighing up to 68 kg / 150 lb.

  2. Video Guide

  3. Specifications

    Costco ITM.

    7777665
    Screen Size

    32 – 90 in. (81 cm – 2.29 m)
    Max Screen Weight

    68 kg / 150 lb
    Compatible VESA Sizes

    75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 300 x 100 mm, 300 x 200 mm, 300 x 250 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 400 x 350 mm, 400 x 400 mm, 400 x100 mm, 500 x 300 mm, 600 x 100 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm
    Non-standard VESA Compatibility

    Any fixings from 75 mm to 600 mm wide and from 75 mm to 400 mm high
    Suitable Wall Types

    Solid Wall (Brick/Concrete), Wood Stud Wall
    Screen Tilt (Downward)

    up to 13°
    Screen Tilt (Upward)

    up to 5°
    Screen Turn

    up to 90°
    Min Distance from Wall

    6.44 cm / 2.53 in.
    Max Distance from Wall

    59.6 cm / 23.5 in.
    On-Wall Levelling

    Yes
    Cable Management

    Yes
    Colour

    Black
    UL Certified

    Yes
    Warranty

    10 Years

  4. TV Height Calculator

    TV Height Calculator

    Find out where you should drill to achieve your desired TV Height, in two simple steps.

    You will need to attach the required parts to the back of your TV before calculating.

    Please select a product version above

    Step 1

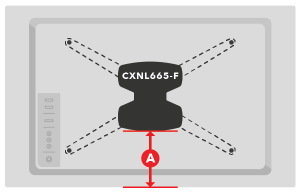

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template or the top hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.

    Start Over

  5. Downloads

    Product Instructions

    Product Tech Sheet
