• 37 - 100" screens
  • 100kg / 220lb max
  • 800 x 400mm max vesa

SKU: ZML8750

ZML8750: AVF Premium Flat TV Mount for ANY WALL

  • Features AVF Any Wall Mounting Technology
  • Attach to plasterboard, wood/metal stud, brick, dot & dab, concrete or even a combination of wall types
  • Fixings included for all of the above wall types
  • On-wall screen levelling
  • Easy on-wall access to the back of your TV
  • Lifetime warranty

Browse all Flat mounts >

Need help with a product?

Open a Support Ticket >
  1. Product Details

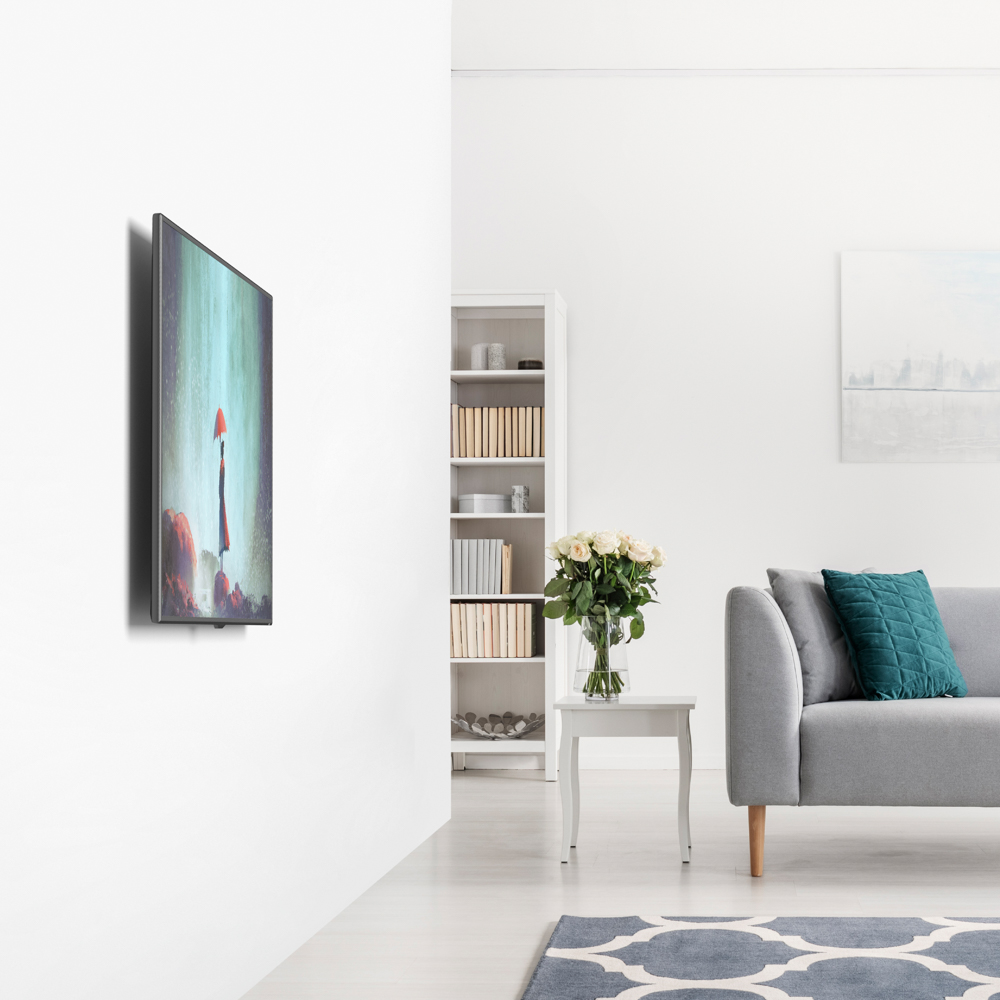

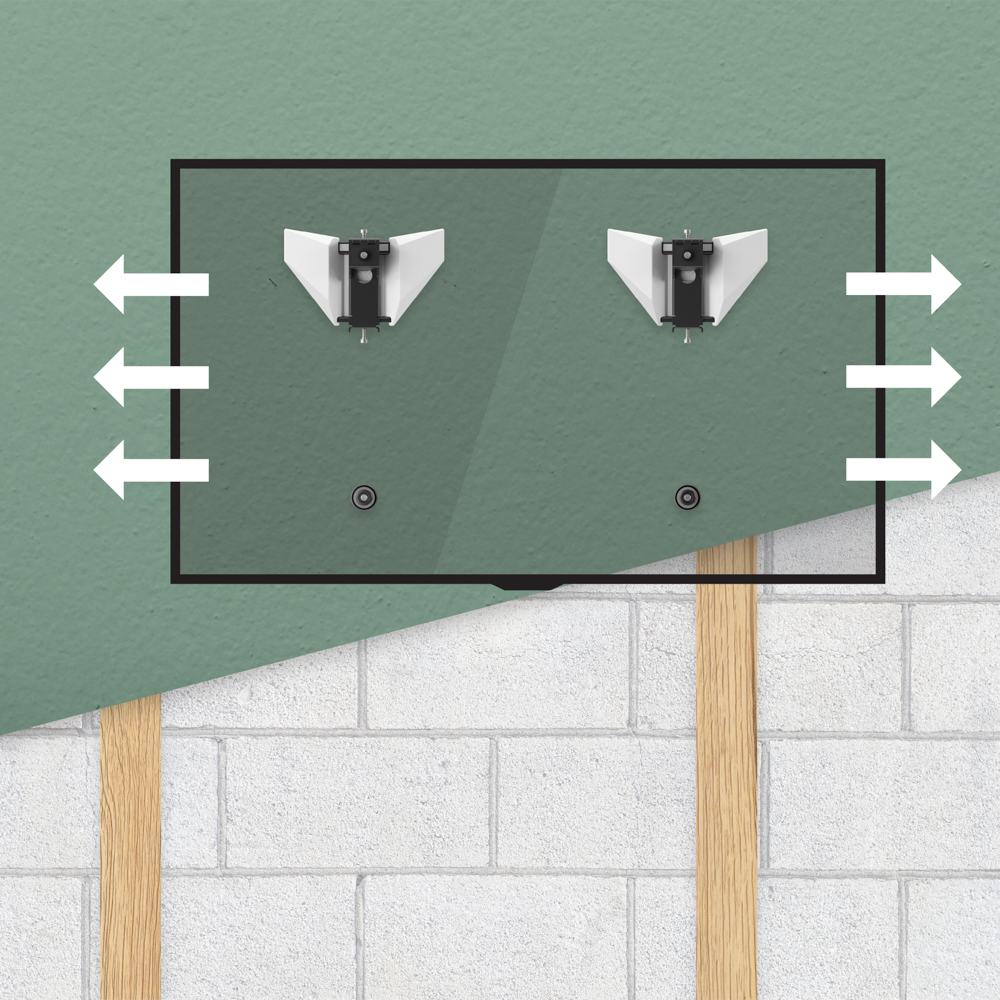

    Now you can mount your TV ANYWHERE on ANY WALL, even on plasterboard alone. AVF Any Wall Mounting Technology means you can choose the exact position for your TV and are not restricted to using the wall stud locations. The universal two-piece design spans all VESA TV fixing sizes from 200mm wide to infinity, and on-wall screen levelling ensures that your installation is perfect every time.

    ZML8750 also allows you to continue accessing the back of your TV to plug in cables and devices – without having to remove the screen from the wall – simply by lifting up the TV.

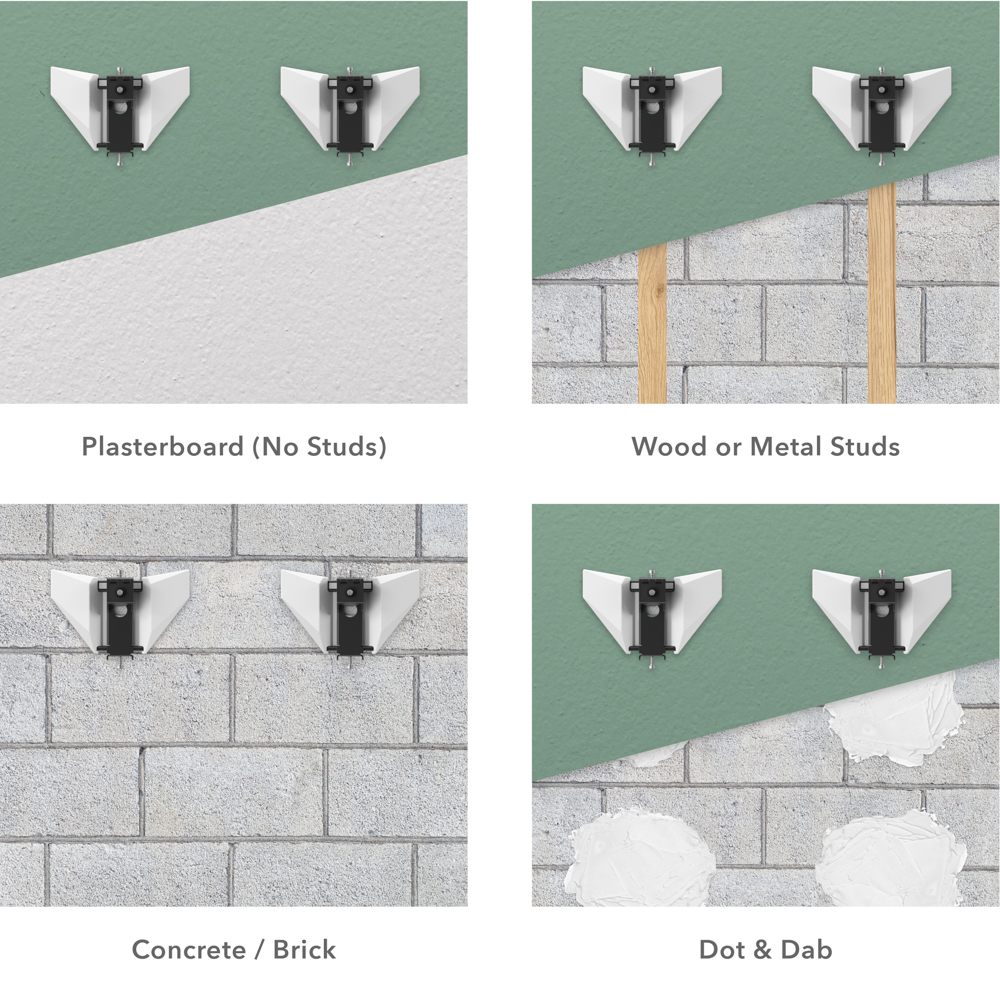

    Includes TV fixings for most TV models, plus wall fixings for these surfaces (or any combination):

    • Plasterboard
    • Wood Studs
    • Metal Studs
    • Brick
    • Concrete
    • Dot & Dab
  2. Video

  3. Specifications

    Colour

    Black & White

    Screen Size

    37 – 100″ / 94 – 254cm

    Max Screen Weight

    100kg / 220lb

    Compatible VESA Sizes

    200 x 200mm, 200 x 300mm, 300 x 100mm, 300 x 200mm, 300 x 250mm, 300 x 300mm, 400 x 100mm, 400 x 200mm, 400 x 300mm, 400 x 350mm, 400 x 400mm, 500 x 300mm, 600 x 100mm, 600 x 200mm, 600 x 300mm, 600 x 400mm, 630 x 310mm, 650 x 320mm, 660 x 300mm, 660 x 320mm, 660 x 400mm, 800 x 100mm, 800 x 200mm, 800 x 300mm, 800 x 400mm

    Mount Function

    Flat to Wall

    Min Distance from Wall

    5cm / 2″

    On-Wall Leveling

    Yes

    Warranty Period

    Lifetime

  4. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template or the top hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.

  5. Downloads
