• 37 - 100" screens
  • 100kg / 220lb max
  • 600 x 400mm max vesa


SKU: JYWL602

JYWL602: AVF Premium Tilt & Turn TV Wall Mount

JL Product Code: 115207716

  • Slim 4.8cm (min) profile.
  • Tilt to avoid screen glare and reflections.
  • Turn to improve your viewing angle.
  • Pull away from the wall for easy cable access.
  • Easy to install – includes wall marking template.
  • On-wall screen levelling function.
  • Fixings Included for Wood Stud & Solid Walls.
  • Lifetime warranty.

Browse all Tilting mounts >

Scroll down for more information

Need help with a product?

Open a Support Ticket >

  1. Product Details

    Super strong and secure, JYWL602 holds 37-100” TVs up to 100kg, and fits TV mounting hole (VESA) sizes up to 600 x 400mm. It’s backed by AVF’s Lifetime Warranty and over 45 years experience designing TV Wall Mounts, so you can mount your TV with confidence.

    Extend and turn your screen to improve your view – great for large rooms with multiple seats – and tilt to avoid light glare and reflections (perfect for those dark TV & movie scenes). Easy no-tools adjustment means you can change your view at a moments notice. Plus, turn your TV for easy ongoing access to ports and buttons on the back of the screen – ideal for streaming sticks, USB drives or plugging in new hardware.

    The simple 3 step installation is made even easier with the included wall marking template and TV Height Calculator tool that help you get the perfect position before you drill your wall. The on-wall screen levelling feature ensures a perfectly level TV, even after installation. Screws are included for a variety of TV makes and models, and wall fixings are included for wood stud and solid walls (brick/concrete).

  2. Video

  3. Specifications

    Colour

    Black
    Screen Size

    37 – 100″ / 94 – 254cm
    Max Screen Weight

    100kg / 220lb
    Compatible VESA Sizes

    100 x 100mm, 100 x 200mm, 200 x 100mm, 200 x 200mm, 200 x 300mm, 300 x 100mm, 300 x 200mm, 300 x 250mm, 300 x 300mm, 400 x 100mm, 400 x 200mm, 400 x 300mm, 400 x 350mm, 400 x 400mm, 500 x 300mm, 600 x 100mm, 600 x 200mm, 600 x 300mm, 600 x 400mm
    Mount Function

    Tilt & Turn
    Screen Tilt (Upward)

    6°
    Screen Tilt (Downward)

    8°
    Screen Turn

    Yes
    Min Distance from Wall

    4.8cm / 1.9"
    Max Distance from Wall

    16cm / 6.3"
    On-Wall Leveling

    Yes
    Tool-Free Adjustment

    Yes
    Warranty Period

    Lifetime

  4. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

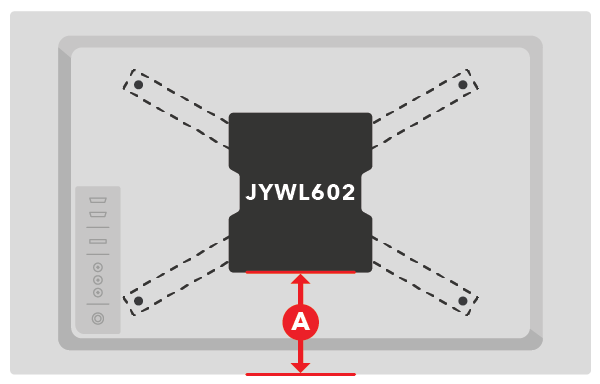

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template or the top hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.

    Start over

  5. Downloads

    Product Instructions

    Product Tech Sheet
