SKU: JXPL601

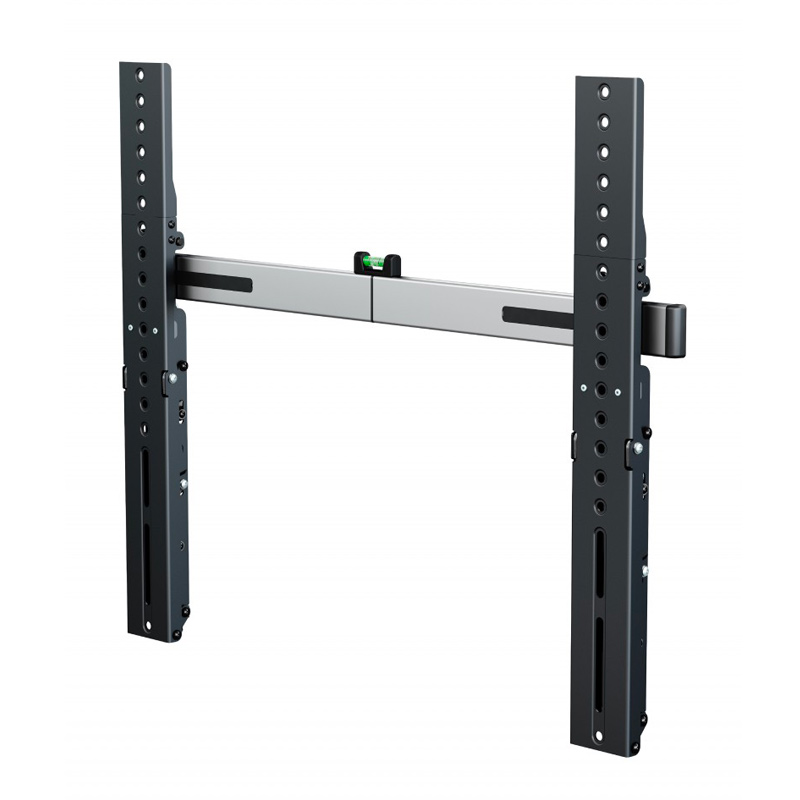

JXPL601: AVF Premium Low Profile Tilt TV Wall Mount
JL Product Code: 89825029
- Slim Profile.
- Tilts to avoid screen glare.
- Stands off the wall for easy Cable access.
- Easy to install – includes wall marking template.
- On the wall screen levelling function.
- Fixings Included for Wood Stud & Solid Walls.
- Lifetime warranty
-
Product Details

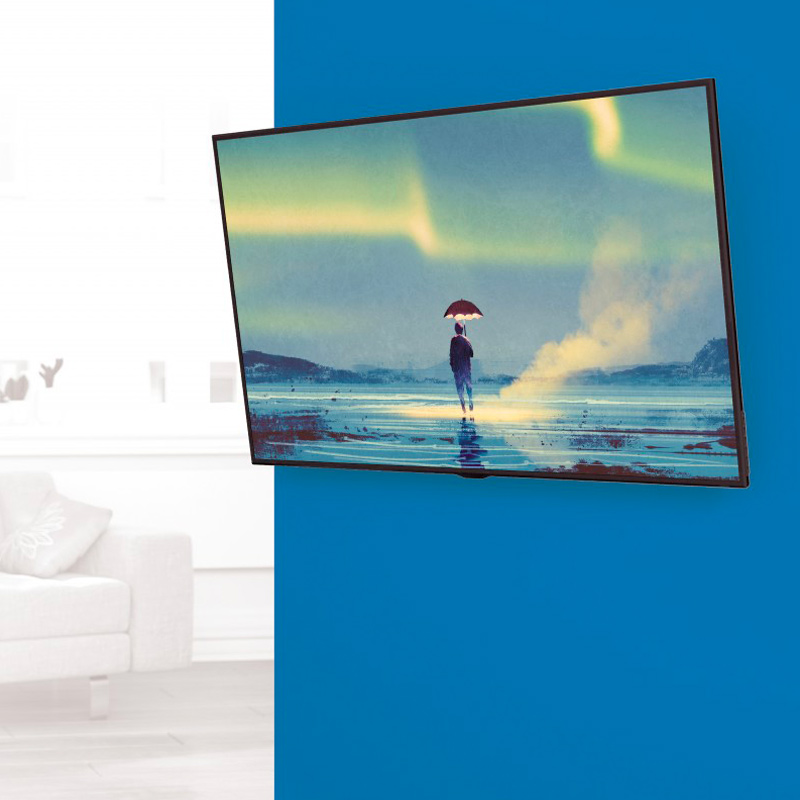

Adjustable Tilt TV Wall Mounts allow screens to be tilted to avoid screen glare from windows or other light sources and can also be used to create improved viewing angles for TVs mounted above eye level.
The simple three step installation process with easy wall marking template and patented on the wall levelling function ensure a perfect finish.
CABLE ACCESS is a handy feature when upgrading media devices or using temporary tech such as video streaming dongles or plug and play game systems.
-
Video
-
Specifications
Colour Black / Silver
Screen Size 37 – 90" / 94 – 229cm
Max TV Weight 80kg / 176lb

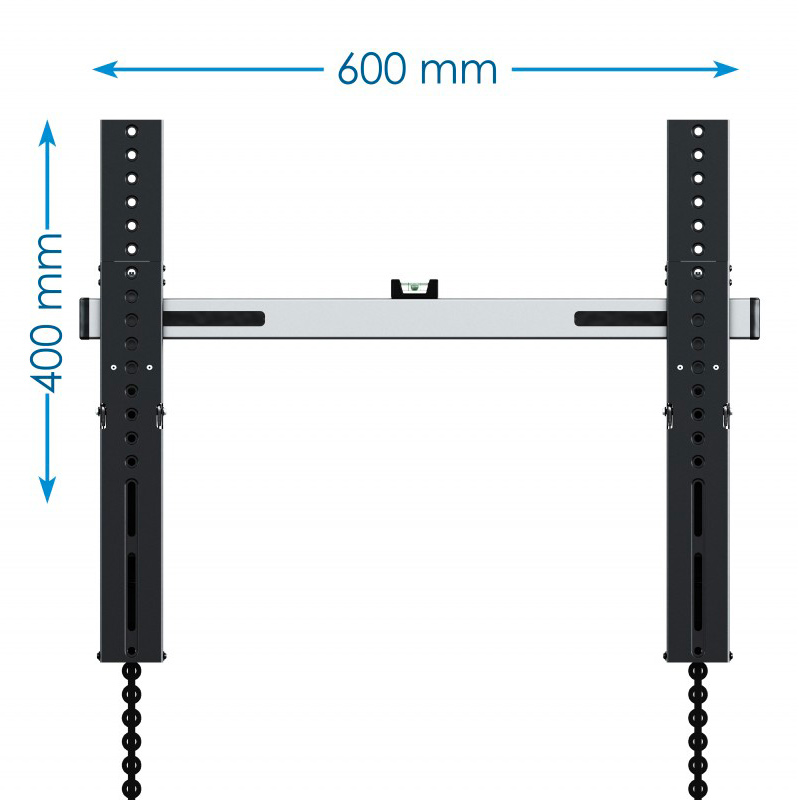

VESA Compatible 75mm x 75mm, 100mm x 100mm, 100mm x 200mm, 200mm x 100mm, 200mm x 200mm, 200mm x 300mm, 300mm x 100mm, 300mm x 200mm, 300mm x 250mm, 300mm x 300mm, 400mm x 100mm, 400mm x 200mm, 400mm x 300mm, 400mm x 350mm, 400mm x 400mm, 500mm x 300mm, 600mm x 100mm, 600mm x 200mm, 600mm x 300mm, 600mm x 400mm
Function Tilt

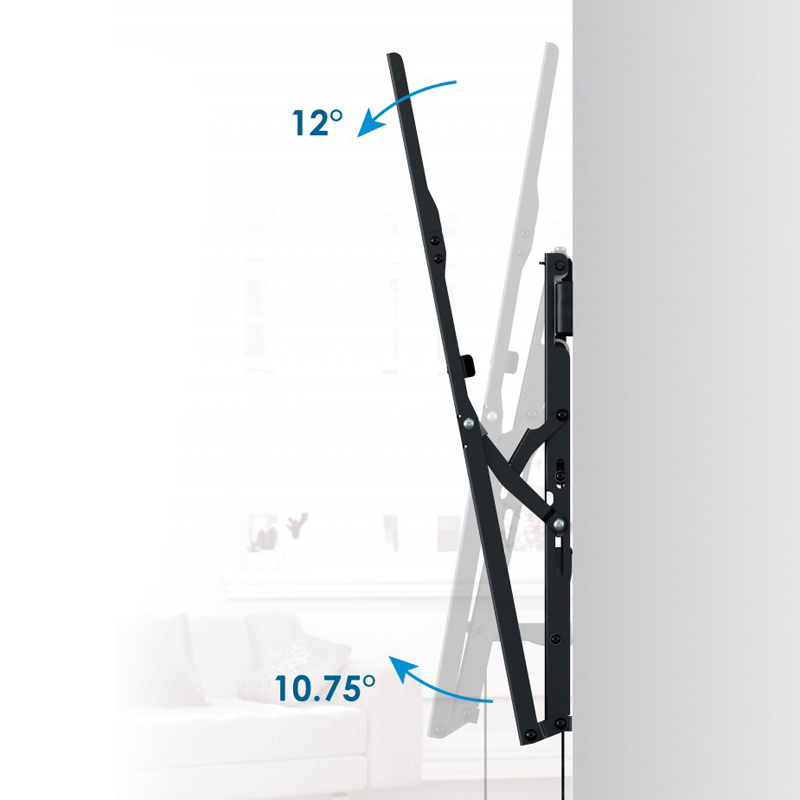

Upward Tilt 10.75°
Downward Tilt 12°

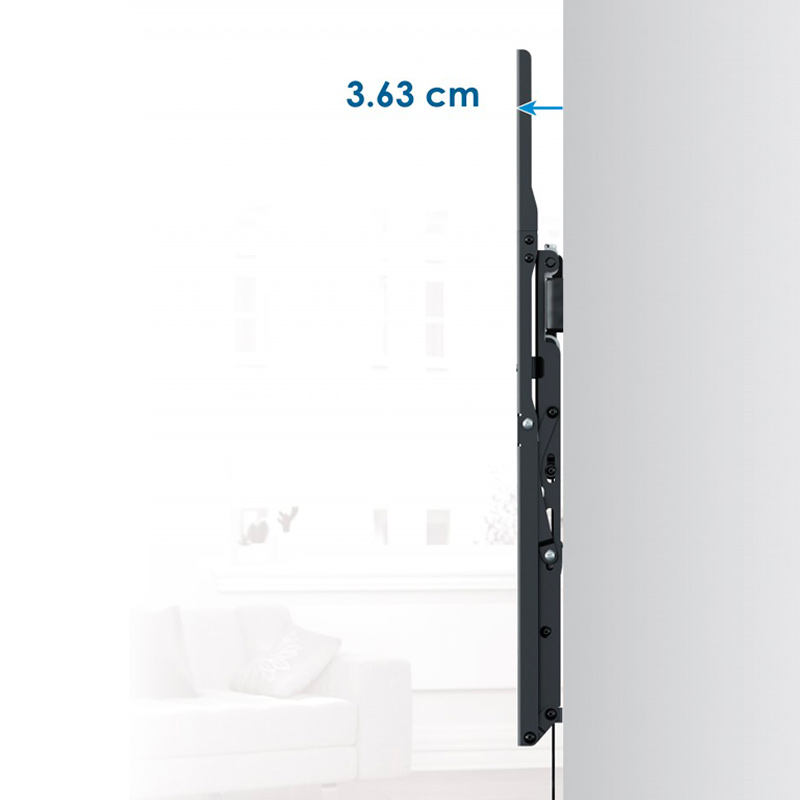

Min Distance 1.43" / 3.63cm

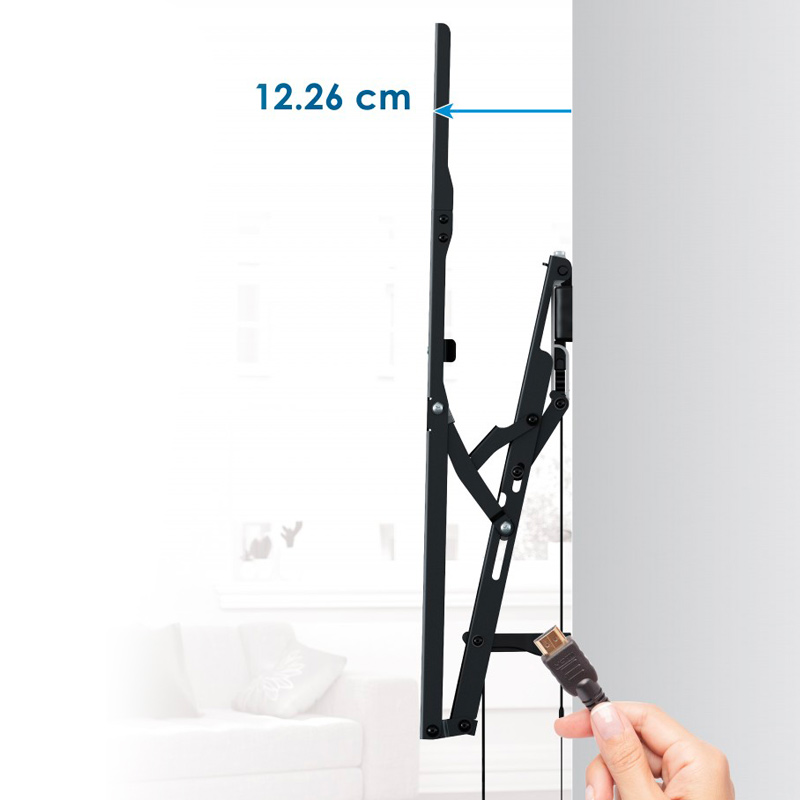

Max Distance 4.83" / 12.26cm
Soundbar Friendly Yes
Remote Friendly Yes
Post install Leveling Yes
Patented Tilt Yes
Tools Free Adjustment Yes
Warranty Period Lifetime
-
TV Height Calculator
-
Downloads
