• 37 - 90" screens
  • 80kg / 176lb max
  • 600 x 400mm max vesa

SKU: JXNL655

JXNL655: AVF Premium Multi Position TV Wall Mount

  • Unlimited TV positioning.
  • Slim profile and amazing reach from the wall.
  • Perfect for mounting TVs in corners.
  • Adjust to view from any angle.
  • Pull away from the wall for easy cable access.
  • Easy to install – includes wall marking template.
  • On the wall screen levelling function.
  • Fixings Included for Wood Stud & Solid Walls.

Need help with a product?

Open a Support Ticket >
  1. Product Details

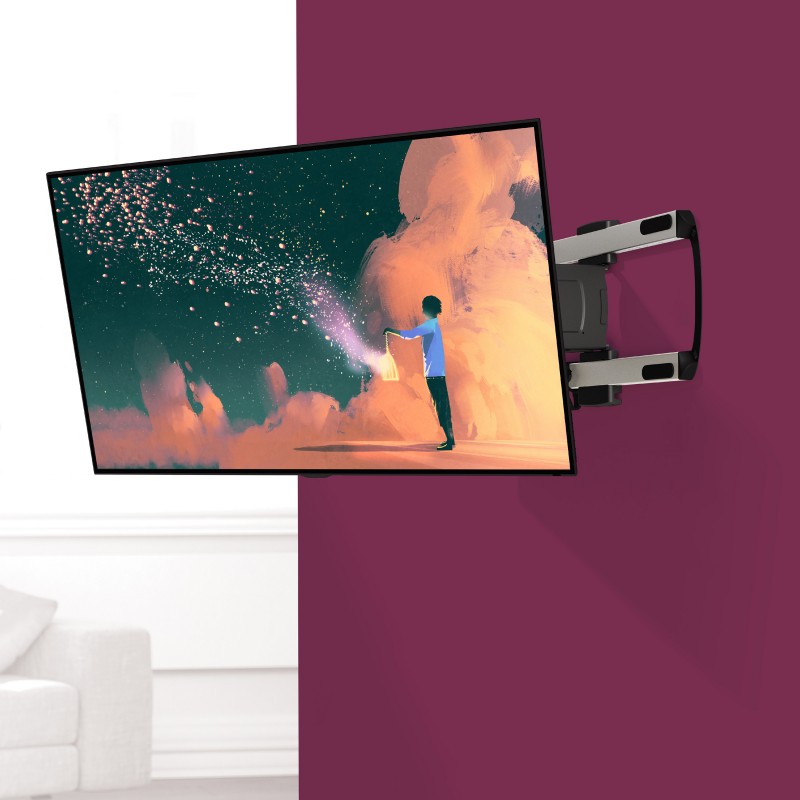

    Multi-Position TV Wall Mounts are the most flexible mounts available. Screens can be positioned neatly against the wall, or pulled out and turned to be viewed from almost any angle.

    This makes Multi-Position TV Wall Mounts the perfect solution for mounting TVs in corners.

    The simple three step installation process with easy wall marking template and patented on the wall levelling function ensure a perfect finish.

    CABLE ACCESS is a handy feature when upgrading media devices or using temporary tech such as video streaming dongles or plug and play game systems.

  2. Video

  3. Specifications

    Colour

    Black & Silver

    Screen Size

    37 – 90" / 94 – 229cm

    Max Screen Weight

    80kg / 176lb

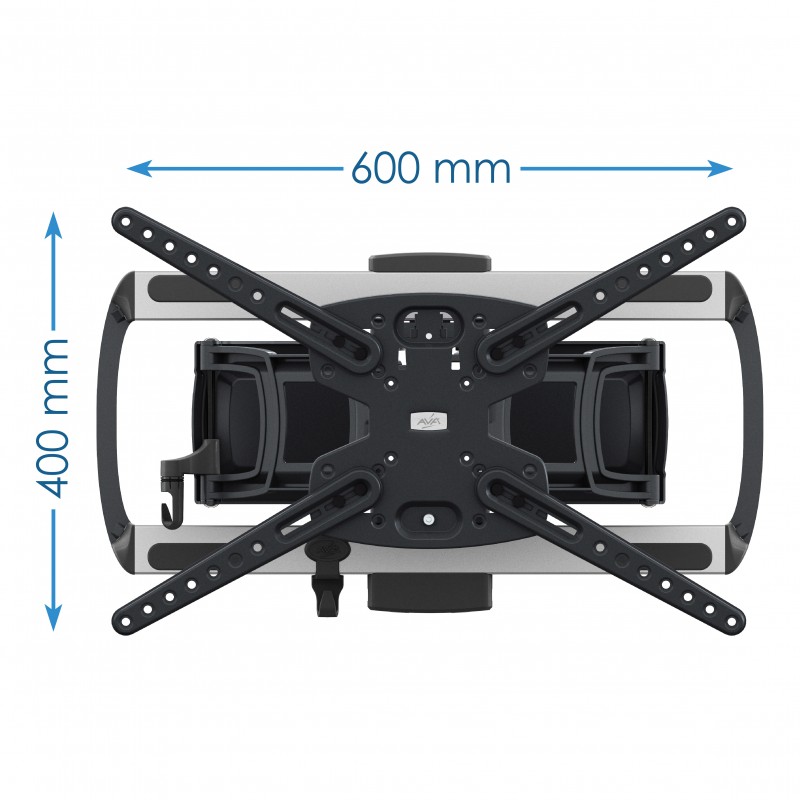

    Compatible VESA Sizes

    75 x 75mm, 100 x 100mm, 100 x 200mm, 200 x 100mm, 200 x 200mm, 200 x 300mm, 300 x 100mm, 300 x 200mm, 300 x 250mm, 300 x 300mm, 400 x 100mm, 400 x 200mm, 400 x 300mm, 400 x 350mm, 400 x 400mm, 500 x 300mm, 600 x 100mm, 600 x 200mm, 600 x 300mm, 600 x 400mm

    Mount Function

    Multi Position

    Screen Tilt (Upward)

    Screen Tilt (Downward)

    13°

    Screen Turn

    180°

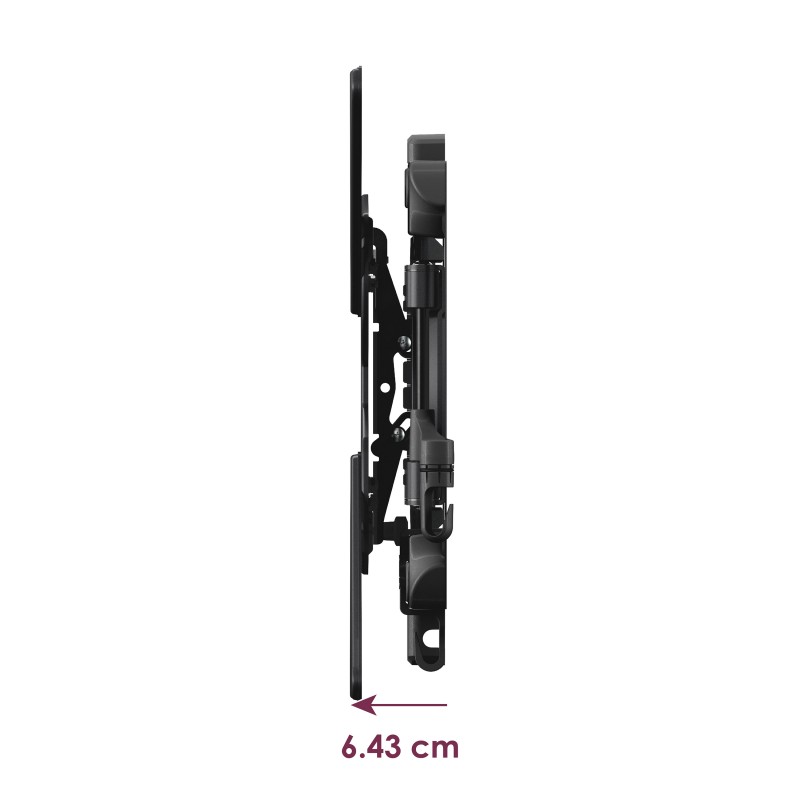

    Min Distance from Wall

    6.34cm / 2.5″

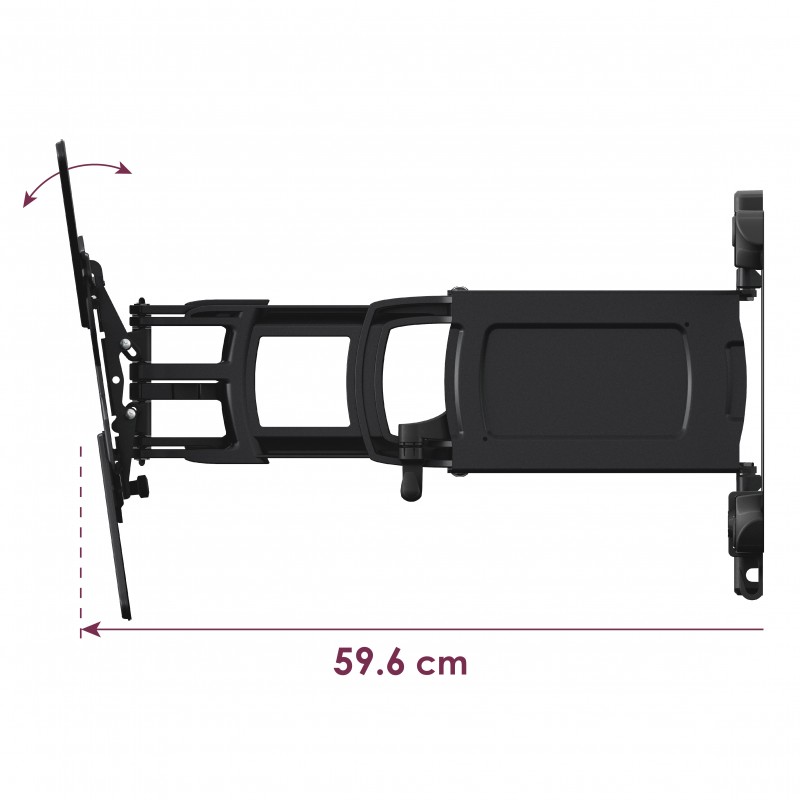

    Max Distance from Wall

    59.5cm / 23.43″

    Cable Management

    Yes

    Soundbar Friendly

    Yes

    Remote Friendly

    Yes

    On-Wall Leveling

    Yes

    Patented Fingertip Tilt

    Yes

    Tool-Free Adjustment

    Yes

  4. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template or the top hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.
