• 12 - 39" screens
  • 20kg / 44lb max
  • 200 x 200mm max vesa

SKU: JNL204

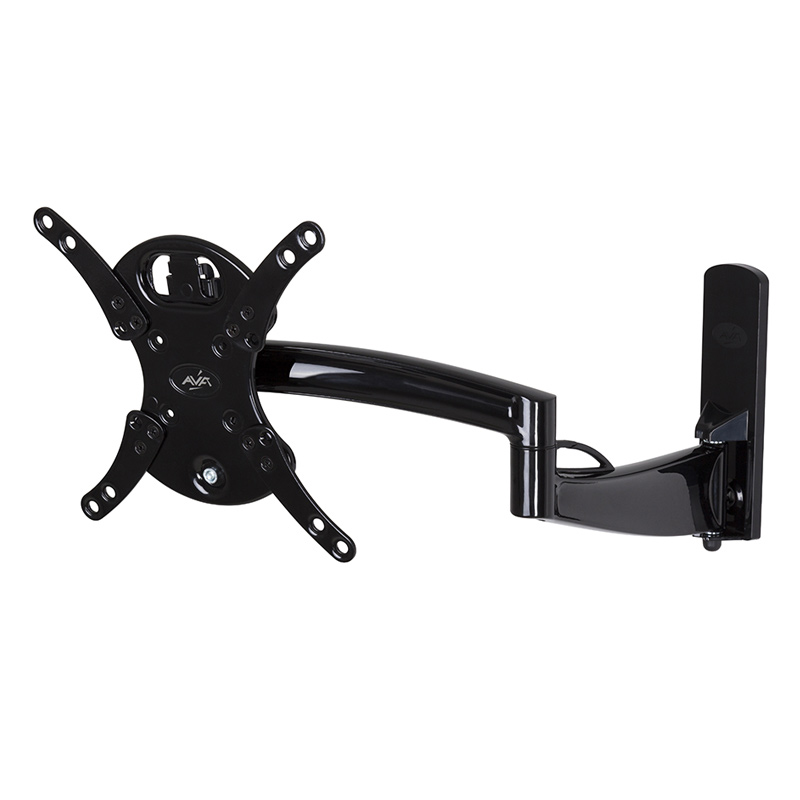

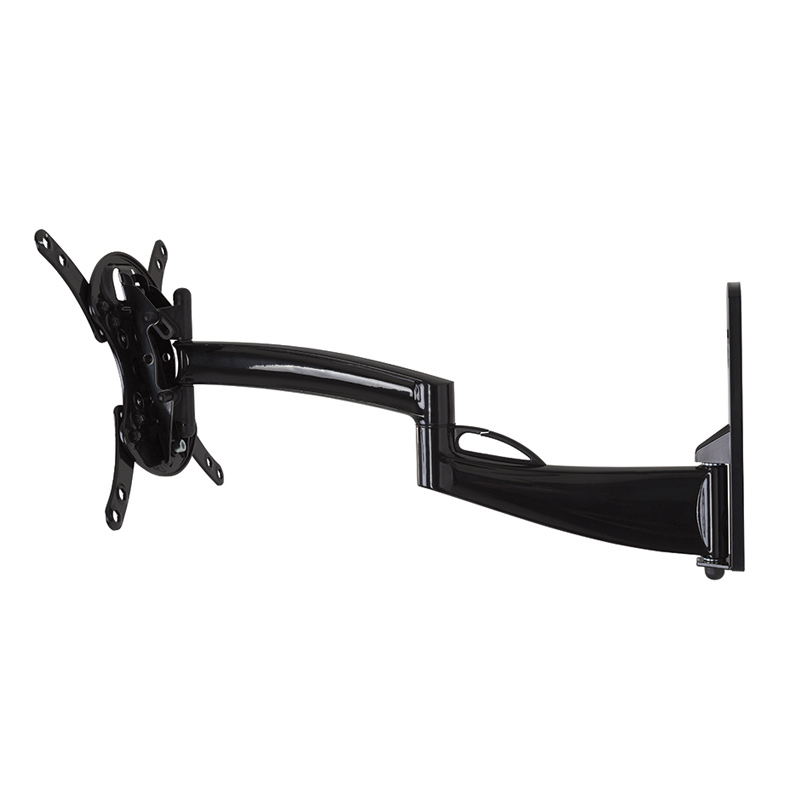

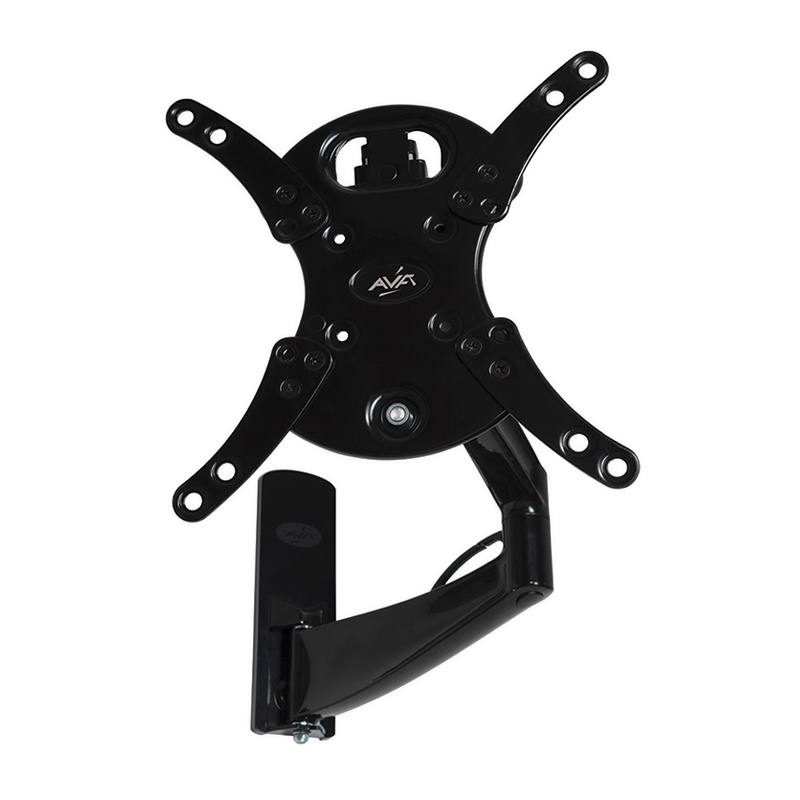

JNL204: AVF Premium Multi Position TV Wall Mount

  • Super slim profile.
  • Unlimited TV positioning.
  • Perfect for corners.
  • Easy to install.
  • Fixings included for Wood Stud & Solid Walls.

Need help with a product?

Open a Support Ticket >
  1. Product Details

    Multi-Position TV Wall Mounts are the most flexible mounts available. Screens can be positioned neatly against the wall, or pulled out and turned to be viewed from almost any angle.

    Multi-Position TV Wall Mounts are the perfect solution for mounting TVs in corners.

    Create extra room space and secure your TV from accidental knocks and tips.

    The simple three step installation process and patented on the wall levelling function ensure a perfect finish.

  2. Specifications

    Colour

    Black

    Screen Size

    up to 39" / 99cm

    Max Screen Weight

    20kg / 44lb

    Compatible VESA Sizes

    50 x 50mm, 75 x 75mm, 100 x 100mm, 100 x 200mm, 200 x 100mm, 200 x 200mm

    Mount Function

    Multi Position

    Screen Tilt (Upward)

    Screen Tilt (Downward)

    13°

    Screen Turn

    180°

    Min Distance from Wall

    6cm / 2.36″

    Max Distance from Wall

    46.2cm / 18.2″

    On-Wall Leveling

    Yes

    Patented Fingertip Tilt

    Yes

    Tool-Free Adjustment

    Yes

  3. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template or the top hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.
