• 26 - 65" screens
  • 60kg / 132lb max
  • 400 x 400mm max vesa

SKU: JLP404

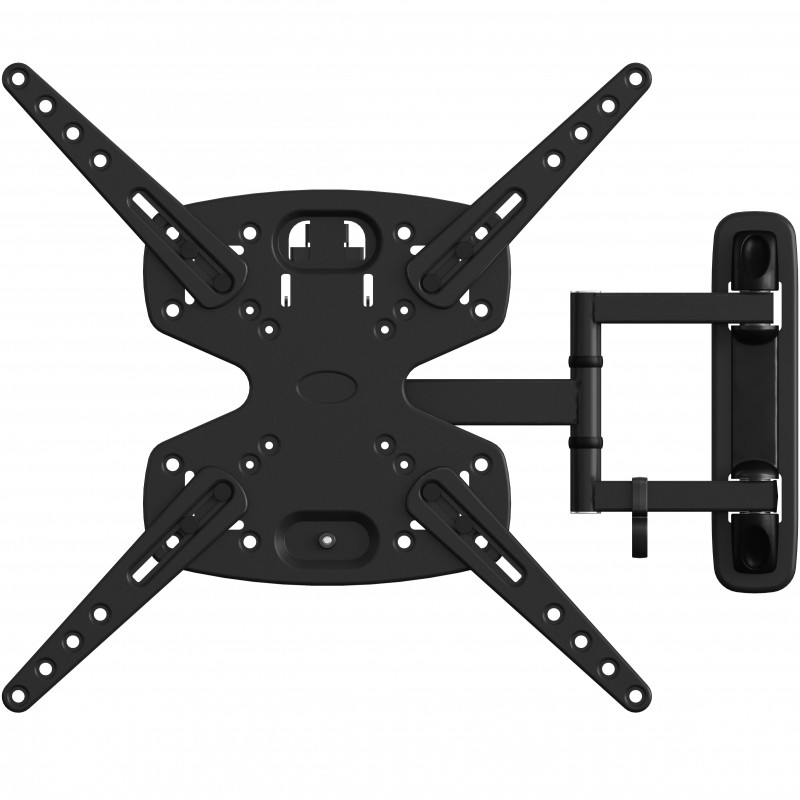

JLP404: AVF Premium Multi Position TV Wall Mount

JL Product Code: 89825028

Shop Now

  • Extend out, tilt and turn your screen
  • Perfect for corners
  • Easy to install
  • Fixings included for Wood Stud & Solid Walls
  • Lifetime warranty

Browse all Multi Position mounts >

Need help with a product?

Open a Support Ticket >
  1. Product Details

    Enjoy a perfect view from any angle

    Fold flat, extend out, tilt and turn – great for open plan spaces or mounting in a corner.

    Extending out from a 6.26cm to 34 cm from the wall, JLP404 offers a 15° range of tilt (10° down / 5° up), as well as 180° rotation all at the touch of a finger, meaning you can easily adjust your screen position to view from any angle. Installation is easy, thanks to the included wall marking template, TV height calculator, and on-wall screen levelling feature.

  2. Specifications

    Colour

    Black

    Screen Size

    26 – 65" / 66 – 165cm

    Max Screen Weight

    60kg / 132lb

    Compatible VESA Sizes

    75 x 75mm, 100 x 100mm, 100 x 200mm, 200 x 100mm, 200 x 200mm, 200 x 300mm, 300 x 100mm, 300 x 200mm, 300 x 250mm, 300 x 300mm, 400 x 100mm, 400 x 200mm, 400 x 300mm, 400 x 350mm, 400 x 400mm

    Mount Function

    Multi Position

    Screen Tilt (Upward)

    Screen Tilt (Downward)

    10°

    Screen Turn

    180°

    Min Distance from Wall

    6.26cm / 2.46″

    Max Distance from Wall

    34cm / 13.4"

    Cable Management

    Yes

    Soundbar Friendly

    Yes

    Remote Friendly

    Yes

    On-Wall Leveling

    Yes

    Patented Fingertip Tilt

    Yes

    Tool-Free Adjustment

    Yes

    Warranty Period

    Lifetime

  3. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template or the top hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.
