• 26 - 55" screens
  • 40kg / 88lb max
  • 400mm x 400mm max vesa

SKU: JGL401

JGL401: AVF Adjustable Tilt TV Wall Mount

JL Product Code: 89825007

Shop Now

  • Tilts for better viewing angles.
  • Ideal for raised TVs.
  • Saves space & secures TV.
  • Easy to install.
  • Fixings included for Wood Stud & Solid Walls.
  • Lifetime warranty

Browse all Tilting mounts >

Scroll down for more information

Need help with a product?

Open a Support Ticket >

  1. Product Details

    Adjustable Tilt TV Wall Mounts can be used to avoid screen glare from windows or other light sources. They can also be used to create improved viewing angles for TVs mounted above eye level.

    Create extra room space and secure your TV from accidental knocks and tips.

    The simple three step installation process and patented on the wall levelling function ensure a perfect finish.

  2. Video

  3. Specifications

    Colour

    Black
    Max TV Weight

    40kg / 88lb

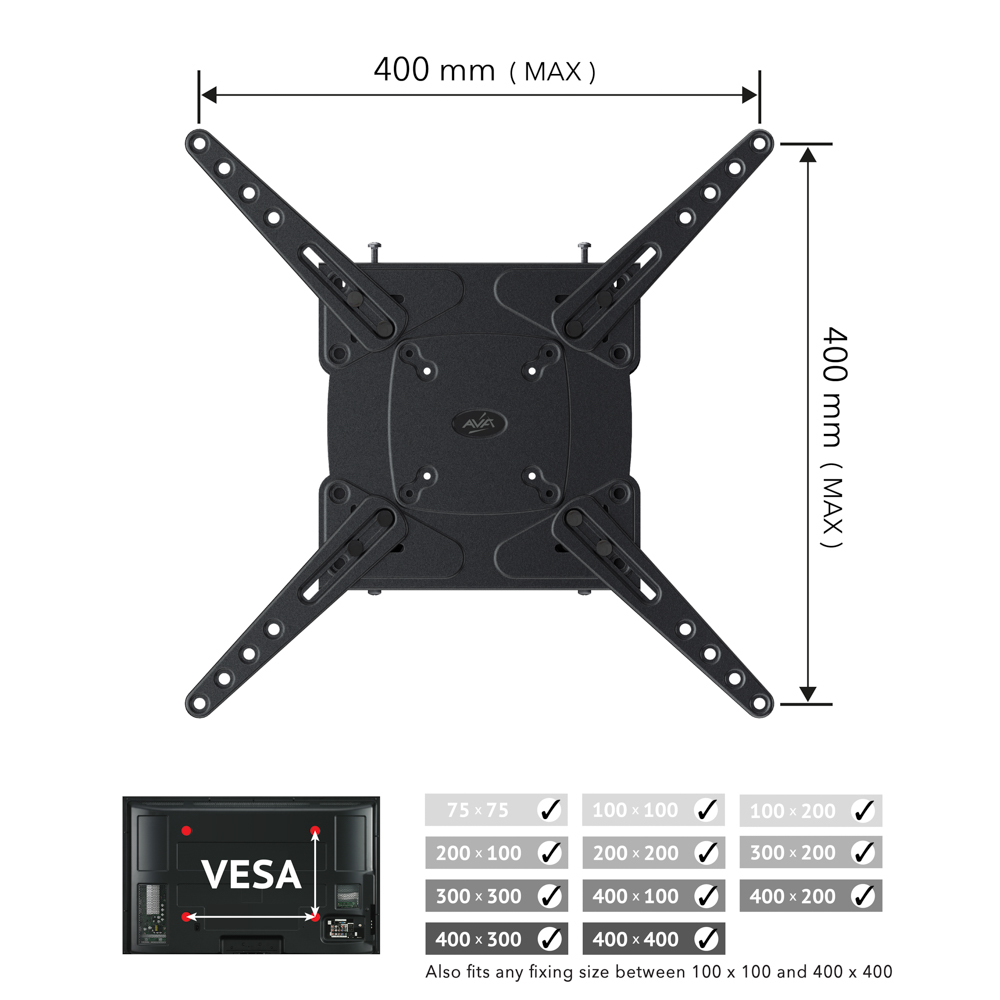

    VESA Compatible

    100mm x 100mm, 200mm x 100mm, 200mm x 200mm, 200mm x 300mm, 300mm x 100mm, 300mm x 200mm, 300mm x 250mm, 300mm x 300mm, 400mm x 100mm, 400mm x 200mm, 400mm x 300mm, 400mm x 350mm, 400mm x 400mm
    Function

    Tilt

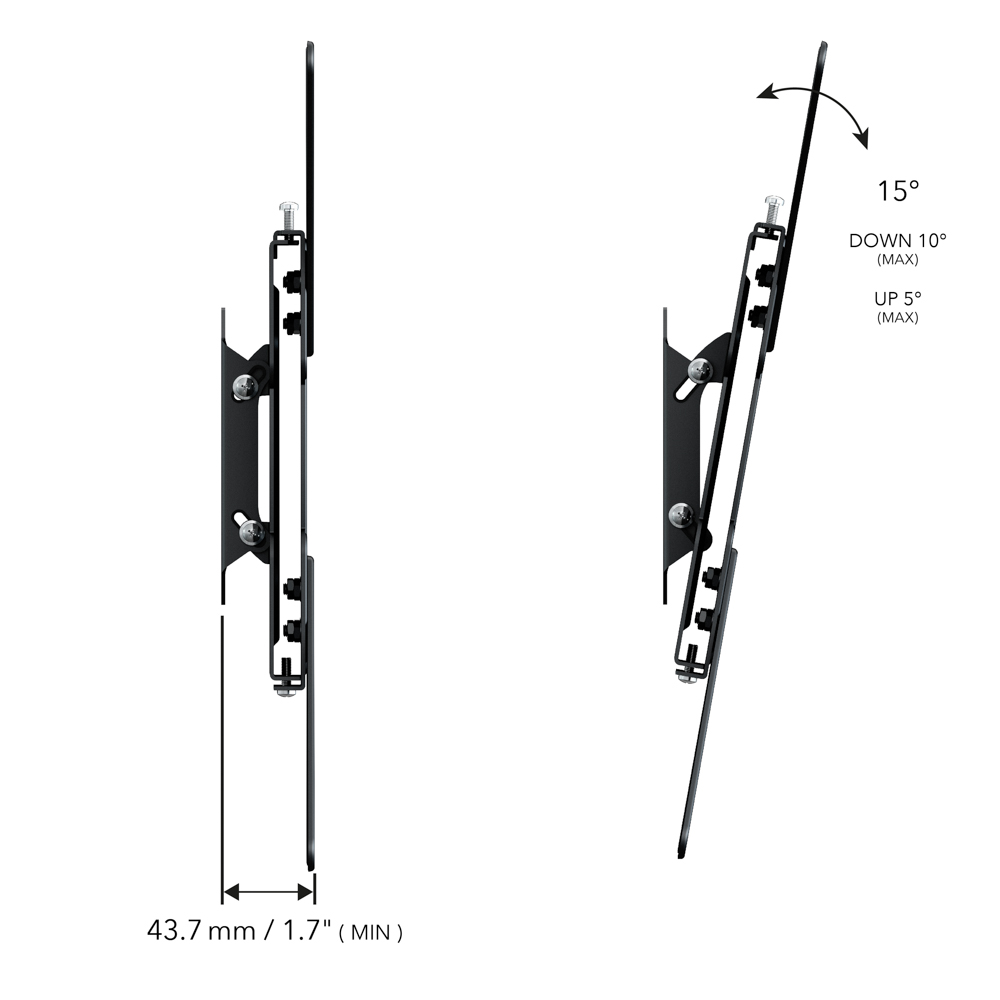

    Upward Tilt

    5°
    Downward Tilt

    10°
    Min Distance From Wall

    4.3cm / 1.69"
    Post install Leveling

    Yes
    Patented Tilt

    Yes
    Tools Free Adjustment

    Yes
    Warranty Period

    Lifetime

  4. TV Height Calculator

    TV Height Calculator

    Find out where to drill to achieve your desired TV height

    Before you begin, you will need to attach the required parts to the back of your TV.

    Please select a product version above

    Step 1

    Measure A from the bottom of the TV mounting plate, to the bottom of your TV as shown.

    Please enter a valid number above

    Step 2

    How high B would you like the bottom of your TV from the floor?

    Please enter a valid number above

    Complete!

    Position the red dotted line on your template or the top hole(s) of your wall plate

    cm

    above the floor to mark your drill locations.

    Start over

  5. Downloads

    Product Instructions

    Product Tech Sheet
